Camshaft timing chain, timing case 2.0 ltr. petrol eng.+, CAWA, CAWB, CCTA, CCZB, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H109158H	Camshaft timing chain	999	Next
1	06K109158G	Camshaft timing chain	999	Next
1	06H109158N	Camshaft timing chain	999	Next
1	06K109158G	Camshaft timing chain	999	Next
1	06H109158N	Camshaft timing chain	999	Next
1	06H109158J	Camshaft timing chain	999	Next
1	06K109158F	Camshaft timing chain	999	Next
1	06K109158AD	Camshaft timing chain	999	Next
1	06H109158M	Camshaft timing chain	999	Next
1	06K109158F	Camshaft timing chain	999	Next
1	06H109467AE	Chain tensioner	999	Next
1	06H109467N	Chain tensioner	999	Next
1	06H109467T	Chain tensioner	999	Next
1	06H109467AB	Chain tensioner	999	Next
1	06K109467K	Chain tensioner	999	Next
1	D 176501A1	Silicon sealant	999	Next
1	06H109469AQ	Slide rail	999	Next
1	06H109469T	Slide rail	999	Next
1	06K109469N	Slide rail	999	Next
1	06H109469AH	Slide rail	999	Next
1	06H109469AP	Slide rail	999	Next
1	06K109469M	Slide rail	999	Next
1	06H109509P	Slide rail	999	Next
1	06H109509Q	Slide rail	999	Next
1	N 10554005	Round hd. screw M6X35	999	Next
1	N 91130301	Cylinder fitting screw with inner multipoint head M8X14X33	999	Next
1	N 91130401	Cylinder fitting screw with inner multipoint head M8X12X27	999	Next
1		Chain sprocket	999	Next
1		Cover	999	Next
1		Chain sprocket	999	Next
1		Chain sprocket	999	Next

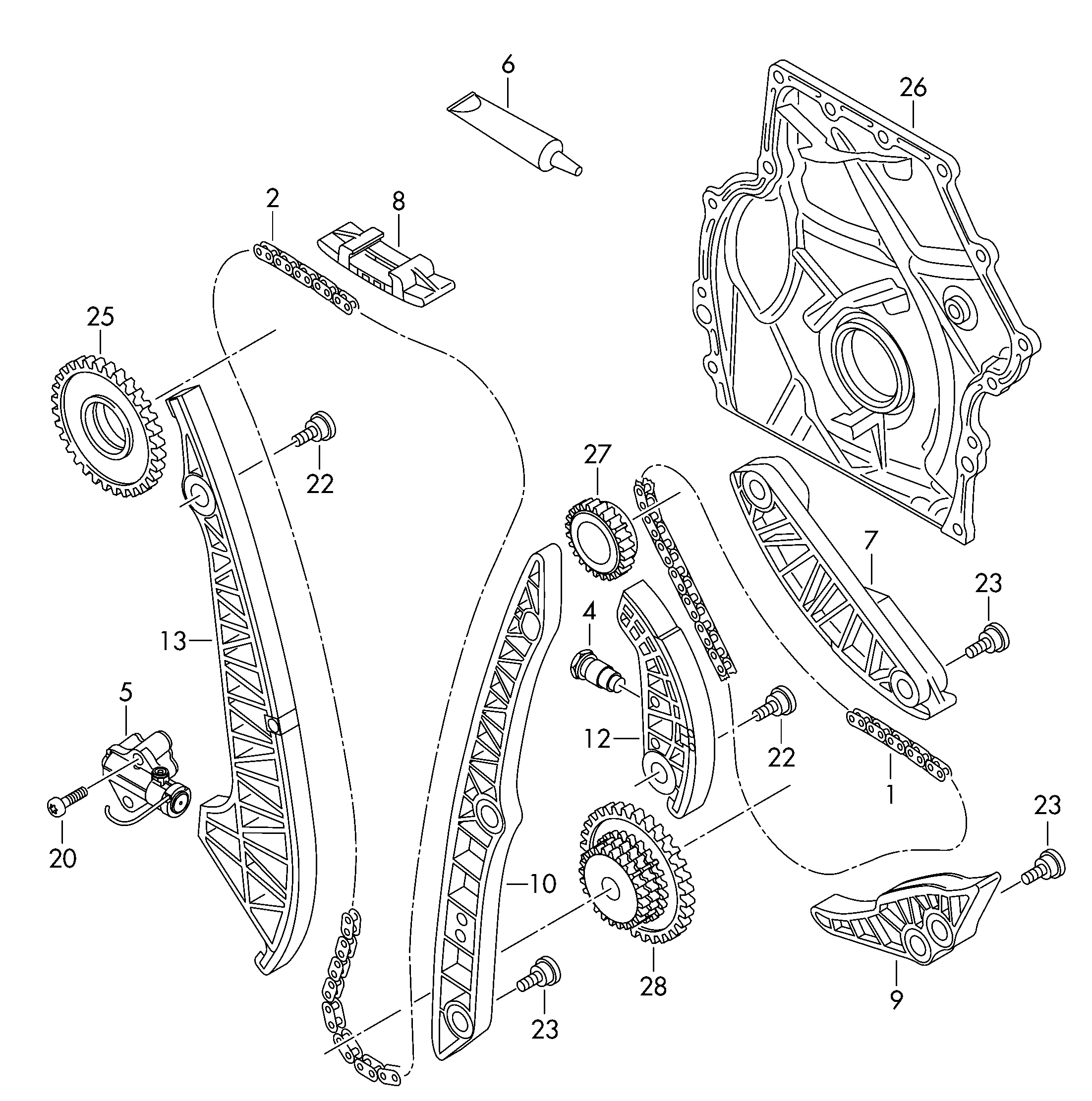

Scheme Camshaft timing chain, timing case 2.0 ltr. petrol eng.+, CAWA, CAWB, CCTA, CCZB, CCZD, CCZC Volkswagen Tiguan 2010-2017 EUR
