Camshaft timing chain, timing case 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	06H109158H	Camshaft timing chain, before 12.12.2011	999	Next
1	06K109158G	Camshaft timing chain, D 12.12.2011 and after	999	Next
1	06H109158N	Camshaft timing chain, before 12.12.2011	999	Next
1	06K109158G	Camshaft timing chain, D 12.12.2011 and after	999	Next
2	06H109158J	Camshaft timing chain, before 12.12.2011	999	Next
2	06K109158F	Camshaft timing chain, D 12.12.2011 and after	999	Next
2	06H109158M	Camshaft timing chain, before 12.12.2011	999	Next
2	06K109158F	Camshaft timing chain, D 12.12.2011 and after	999	Next
4	06H109467L	Chain tensioner	999	Next
5	06H109467N	Chain tensioner, before 12.12.2011	999	Next
5	06K109467K	Chain tensioner, D 12.12.2011 and after	999	Next
5	06H109467N	Chain tensioner, before 30.04.2010	999	Next
5	06H109467T	Chain tensioner, D 01.05.2010 - 29.08.2011	999	Next
5	06H109467AB	Chain tensioner, D 30.08.2011 and after 12.12.2011	999	Next
5	06K109467K	Chain tensioner, D 12.12.2011 and after	999	Next
7	06H109469AQ	Slide rail, before 15.09.2008	999	Next
7	06H109469AN	Slide rail, D 15.09.2008 - MJ 2009	999	Next
7	06H109469AQ	Slide rail, D MJ 2010 and after	999	Next
8	06H109469T	Slide rail	999	Next
9	06H109469AH	Slide rail	999	Next
10	06H109469AP	Slide rail	999	Next
12	06H109509P	Slide rail	999	Next
13	06H109509Q	Slide rail	999	Next
20	N10554005	Round hd. screw M6X35	999	Next
22	N91130301	Cylinder fitting screw with inner multipoint head M8X14X33	999	Next
23	N91130401	Cylinder fitting screw with inner multipoint head M8X12X27	999	Next
25, 27, 28		Chain sprocket	999	Next
26		Cover	999	Next

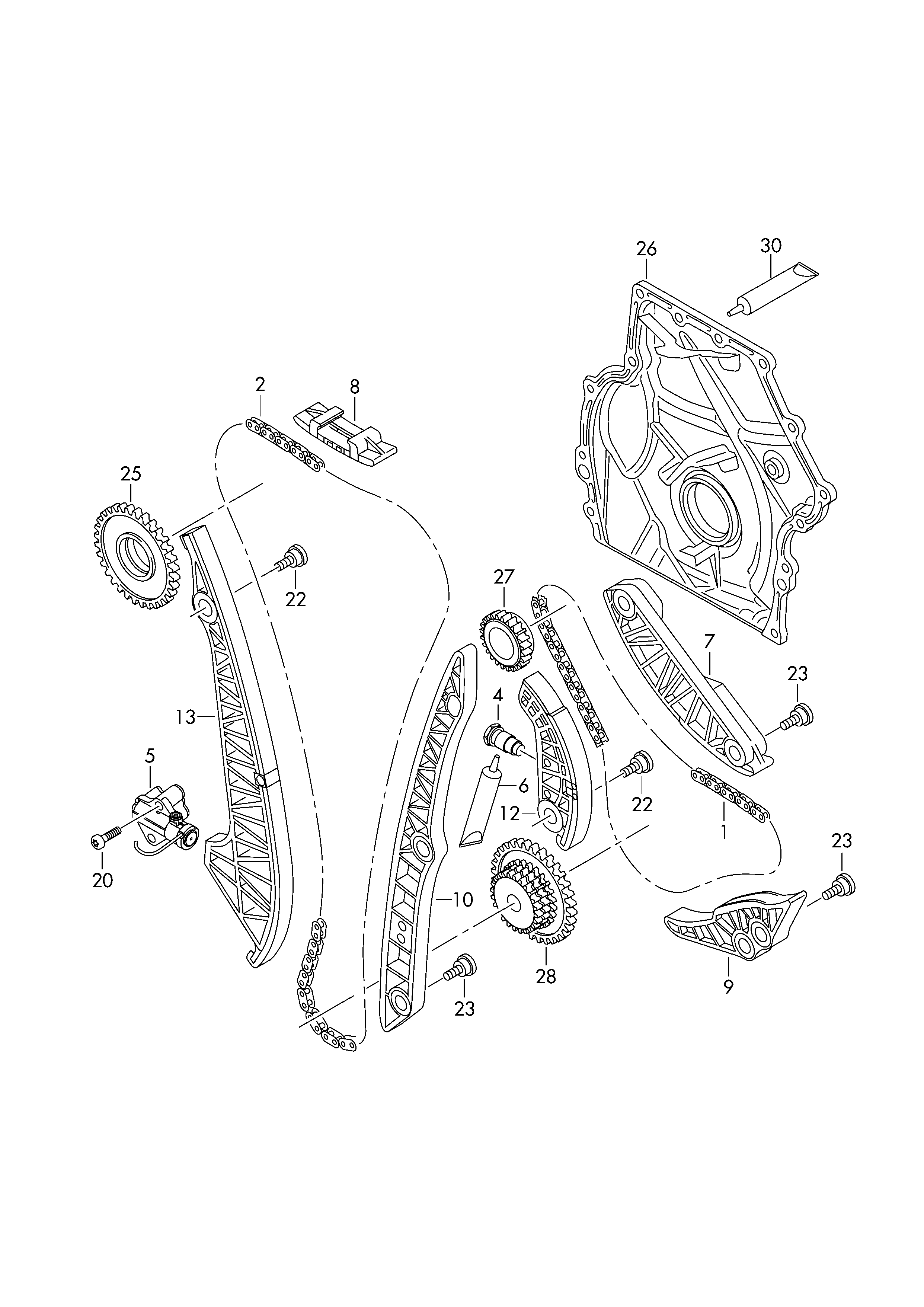

Scheme Camshaft timing chain, timing case 2.0 ltr. 4-cylinder Volkswagen Passat CC Coupe 2009-2012 EUR
