Camshaft timing chain, timing case 1.2 ltr. petrol engine+, CBZB Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	03F109158G	Camshaft timing chain	999	Next
2		Chain sprocket	999	Next
3		Chain sprocket not for this model	999	Next
4	03F109469E	Guide rail	999	Next
5	WHT004069	Bearing screw M8X16	999	Next
6	WHT004068	Bearing screw M8X16	999	Next
7	03F109509F	Slide rail	999	Next
8	WHT004068	Bearing screw M8X16	999	Next
9	03F109507D	Chain tensioner	999	Next

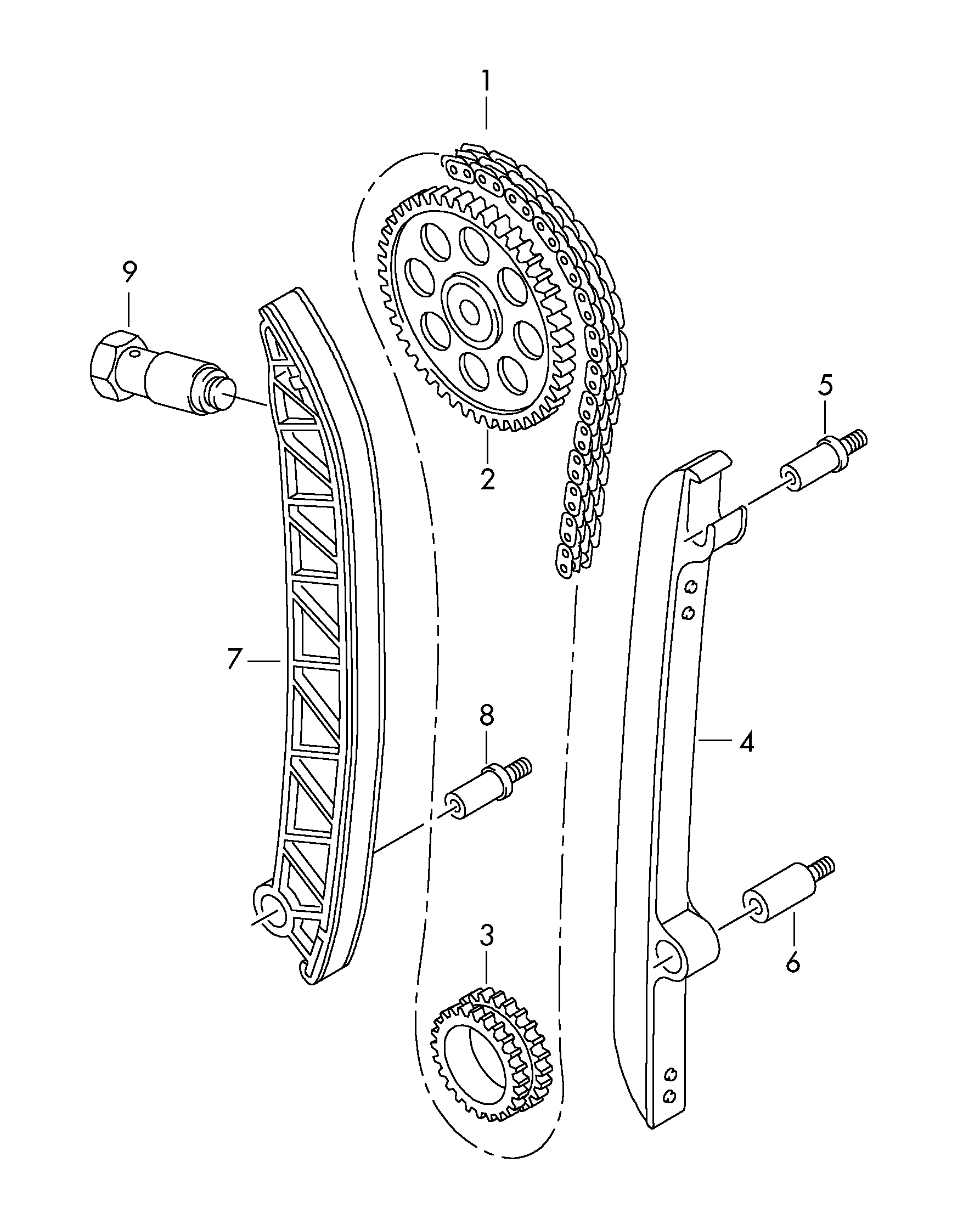

Scheme Camshaft timing chain, timing case 1.2 ltr. petrol engine+, CBZB Volkswagen Polo 2013-2017 EUR
