Bumper Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
5	5K0807651C	Cross member	999	Next
5	5K0807651D	Cross member	999	Next
10	5M0805903F	Spoiler	999	Next
	5M0805903FV7F	Spoiler anthracite	999	Next
14	1K0805915C	Retainer for spoiler	999	Next
	1K0805915C9B9	Retainer for spoiler satin black	999	Next
15	5M0807531B	Underrun bar	999	Next
	5M0807531BV7R	Underrun bar matt silver metallic	999	Next
20	5M0807241C	Cover cap tow hitch	999	Next
	5M0807241CV7F	Cover cap tow hitch anthracite	999	Next
25	5M0807109E	Side reinforcement bumper	999	Next
30	5M0807049	Guide profile	999	Next
30	5M0807050	Guide profile	999	Next
35	5M0807177G	Guide piece	999	Next
35	5M0807178G	Guide piece	999	Next
40	5M0807221AA	Bumper cover	999	Next
40	5M0807221AAGRU	Bumper cover primed	999	Next
40	5M0807221AC	Bumper cover for vehicles with park assist system	999	Next
40	5M0807221ACGRU	Bumper cover for vehicles with park assist system primed	999	Next
45	1K0898623A	1 set attachment parts for bumpers and vehicles with front end damage	999	Next
45	1K0898623	1 set attachment parts for bumpers and vehicles with front end damage	999	Next
65	5M0807355A	Trim for wheel aperture	999	Next
	5M0807355AV7F	Trim for wheel aperture anthracite	999	Next
65	5M0807356A	Trim for wheel aperture	999	Next
	5M0807356AV7F	Trim for wheel aperture anthracite	999	Next
70	5M0853665P	Trim for fog lights	999	Next
70	5M0853665PV7F	Trim for fog lights anthracite	999	Next
70	5M0853666M	Trim for fog lights	999	Next
70	5M0853666MV7F	Trim for fog lights anthracite	999	Next
80	5M0853671E	Vent grille	999	Next
	5M0853671E9B9	Vent grille satin black	999	Next
85	N10354602	Hexagon socket head panel bolt 5X16	999	Next
95	N90218403	Rivetted cap nut M6/0,5-4,7	999	Next
100	N90648402	Hexagon head bolt (combi) M10X35	999	Next
105	N90808201	Hexagon socket head panel bolt 6X18,5	999	Next
105	N90629803	Hex.hd. thread cutting bolt 7X20	999	Next
115	N90833801	Expanding nut 4,8	999	Next
125	N90969901	Hex socket head locating bolt M6X25	999	Next
130	N91093501	Hex socket oval head collared M6X30	999	Next
135	N10354602	Hexagon socket head panel bolt 5X16	999	Next
140	N91033802	Semi round bolt (combi) with hexagon socket head M6X22	999	Next
155	D180KU2A1	2 pk plastic adhesive MAT.NR. AMV 180 KU2 01 plastic repair	999	Next
160	D822150A1	Bonding agent for plastic material 150ML	999	Next

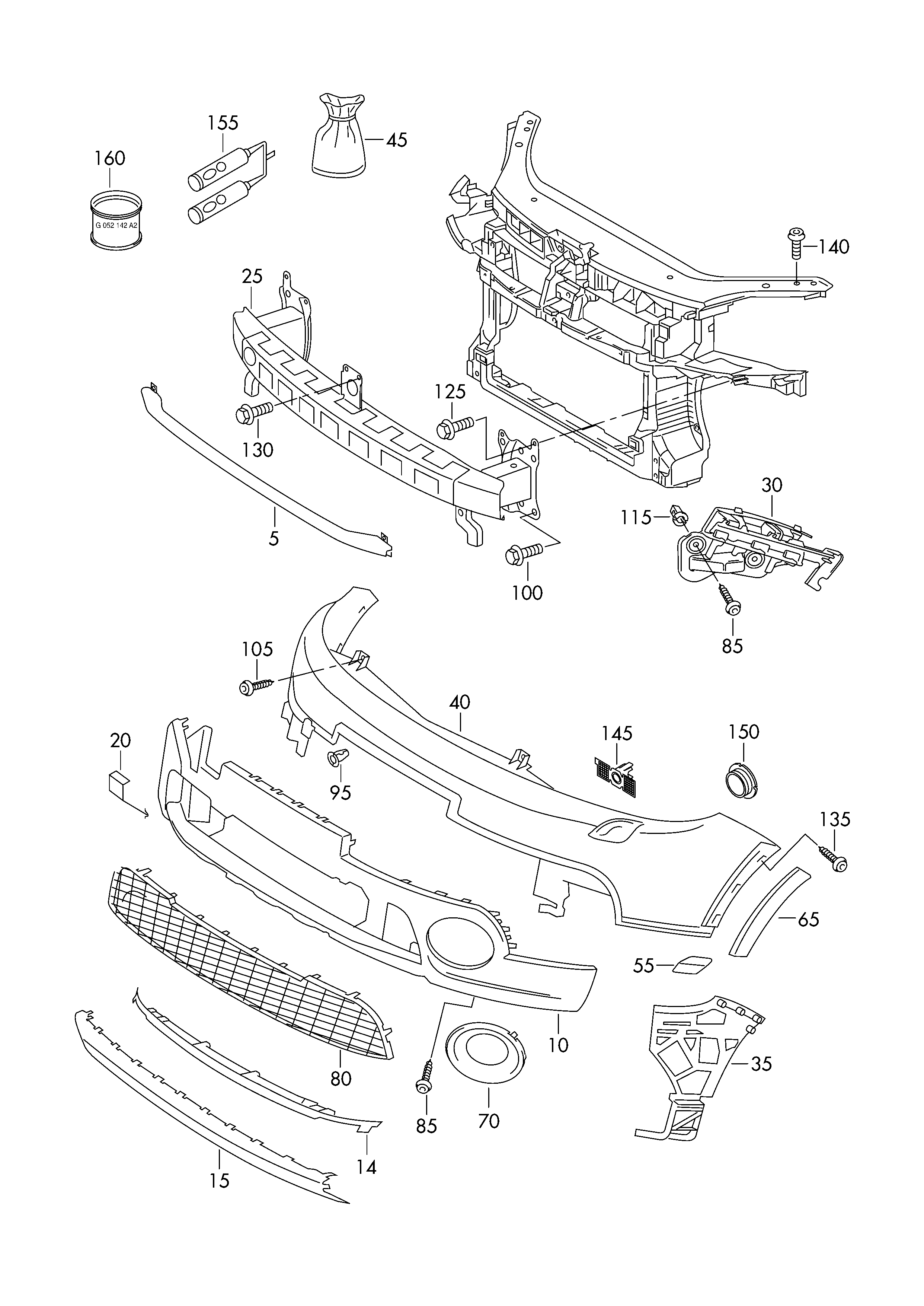

Scheme Bumper Volkswagen Golf Plus 2012-2014 EUR
