Brake servo, lhd, before 04.03.2012 Volkswagen Golf Plus 2012-2014 EUR
Category content
- Spare parts table
- An illustrated scheme of this category is below the list of spare parts
| № | Part number | Part name | Go to the spare parts page |
|---|---|---|---|
| 1 | 1K1614106AA | Brake servo | Next |
| 1 | 1K1614106AA | Brake servo | Next |
| 1 | 1K1614106AB | Brake servo | Next |
| 1 | 1K1614106AB | Brake servo | Next |
| 2 | 861612175 | Seal | Next |
| 2 | 7P0612161 | Seal | Next |
| 3 | 6Q0612161 | Seal | Next |
| 4 | N02300313 | Hexagon collar nut self-locking M8 | Next |
| 5 | 1K1612163 | Heat shield | Next |
| 6 | Damper not for this model | Next | |
| 7 | N90074404 | Hexagon nut, self-locking M8 | Next |

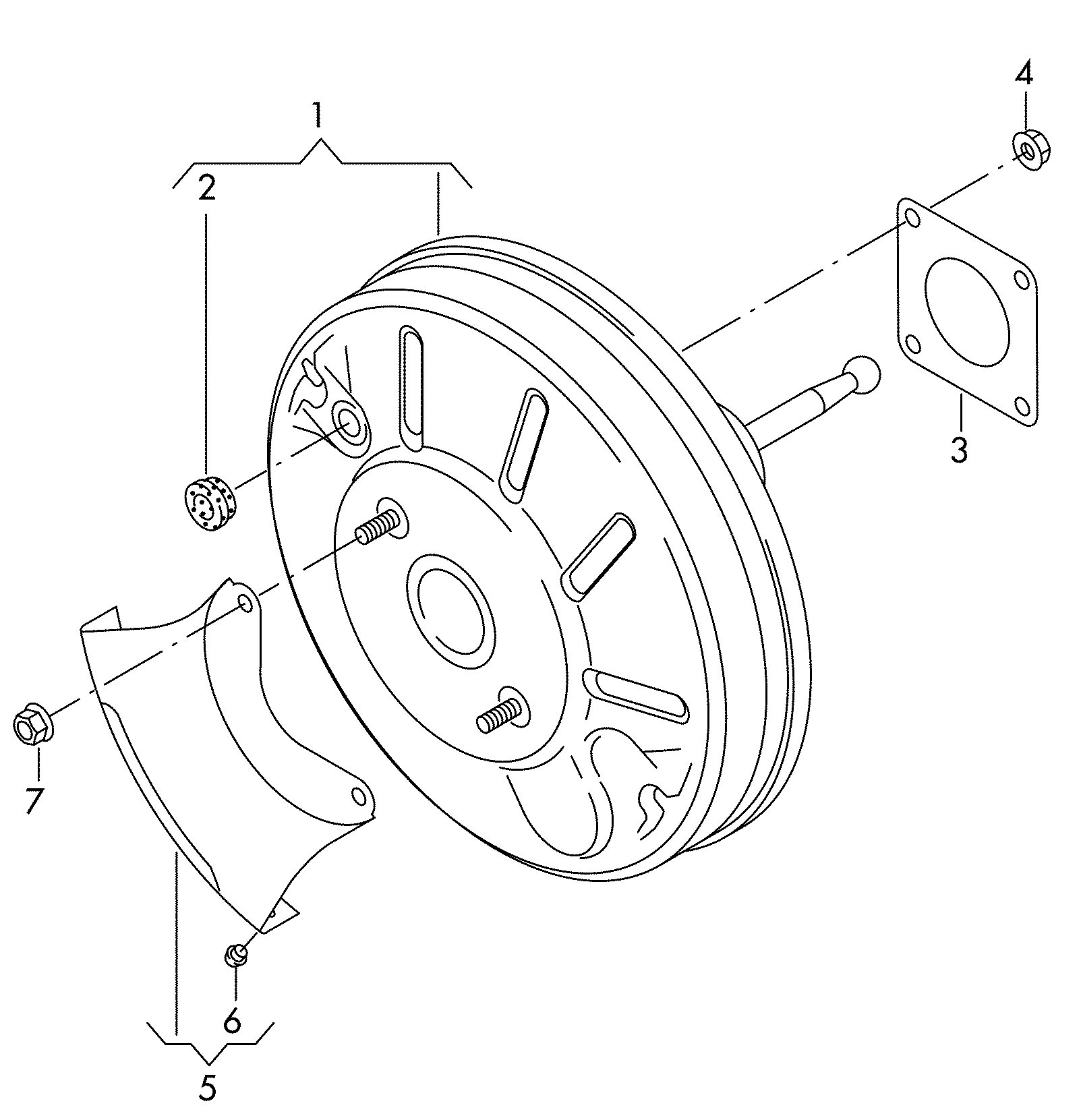

Scheme Brake servo, lhd, before 04.03.2012 Volkswagen Golf Plus 2012-2014 EUR
