Brake pipe, brake hose rear Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0614742AB	Brake line from connecting piece to brake hose	999	Next
2	1K0614741AA	Brake line from connecting piece to brake hose	999	Next
3	1K0611775C	Brake hose	999	Next
4	1K0611763E	Brake pipe from brake hose to piston housing	999	Next
5	1K0611764L	Brake pipe from brake hose to piston housing	999	Next
6	191611715	Retaining spring	999	Next
7		Retainer for brake hose not for this model	999	Next
8		Hexagon bolt not for this model	999	Next
9	1K0611791A	Retaining plate	999	Next
10		Clip not for this model	999	Next
11	1H0611797	Bracket	999	Next
12	8K0611797D	Clip	999	Next
13	1J0611853A	Distance piece	999	Next
14	1H0611797C	Bracket	999	Next
14	5Q0611797B	Retainer for brake pipe	999	Next
15		Spacer ring not for this model	999	Next

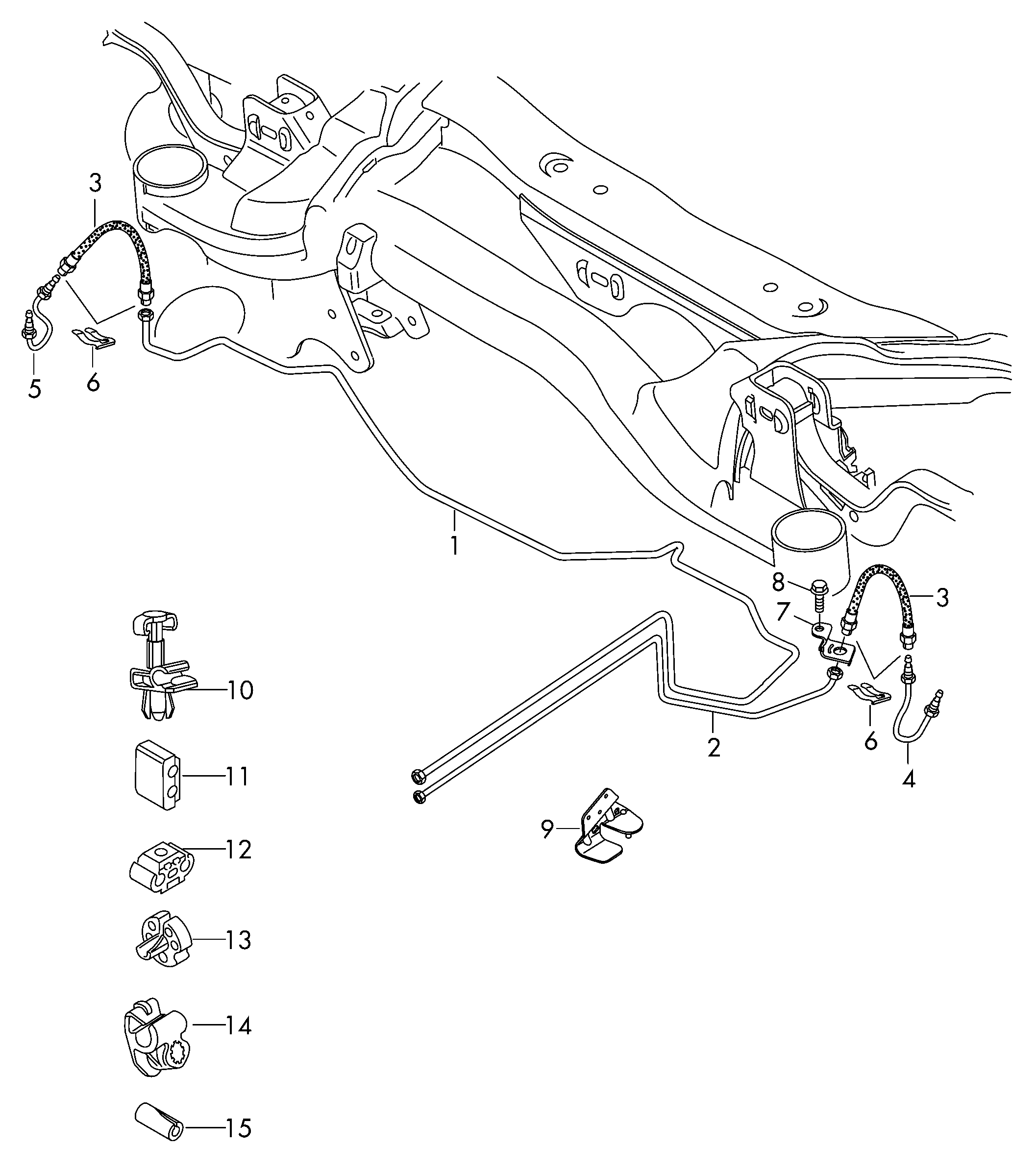

Scheme Brake pipe, brake hose rear Volkswagen Golf Plus 2012-2014 EUR
