Brake pipe, brake hose rear fr.wheel drv Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0614741G	Brake line from connecting piece to brake hose, before 03.11.2008	999	Next
2	3C0614741T	Brake line from connecting piece to brake hose, D 03.11.2008 and after	999	Next
1	3C0614741AA	Brake line from connecting piece to brake hose, D 03.11.2008 and after	999	Next
3	3C0614742B	Brake line from connecting piece to brake hose, before 03.11.2008	999	Next
4	3C0614742C	Brake line from connecting piece to brake hose, D 03.11.2008 and after	999	Next
3	3C0614742D	Brake line from connecting piece front to rear, D 03.11.2008 and after	999	Next
5	3C0611782P	Brake line from connecting piece to brake hose	999	Next
6	191611715	Retaining spring	999	Next
7	1K0611775C	Brake hose	999	Next
7	1K0611775C	Brake hose	999	Next
7	5N0611775	Brake hose	999	Next
7	5N0611775B	Brake hose	999	Next
8	3C0611763A	Brake pipe from brake hose to piston housing	999	Next
8	3C0611763A	Brake pipe from brake hose to piston housing	999	Next
9	3C0611764A	Brake pipe from brake hose to piston housing	999	Next
9	3C0611764A	Brake pipe from brake hose to piston housing	999	Next
10	3C0611847A	Retainer for brake hose	999	Next
10	3C0611847B	Retainer for brake hose	999	Next
11	3C0611848A	Retainer for brake hose	999	Next
11	3C0611848B	Retainer for brake hose	999	Next
12	3C0611732B	Protective plate	999	Next
13	N10354602	Hexagon socket head panel bolt 5X16	999	Next
15	1H0611797C	Bracket	999	Next
15	5Q0611797B	Retainer for brake pipe	999	Next
15	3C0611797B	Brake line bracket	999	Next
16	1H0611797	Bracket	999	Next
17	8K0611797D	Clip	999	Next
12	1J0611797	Retainer for brake pipe	999	Next
18	1J0611853	Spacer sleeve	999	Next
20	1K0611755	Distributor	999	Next

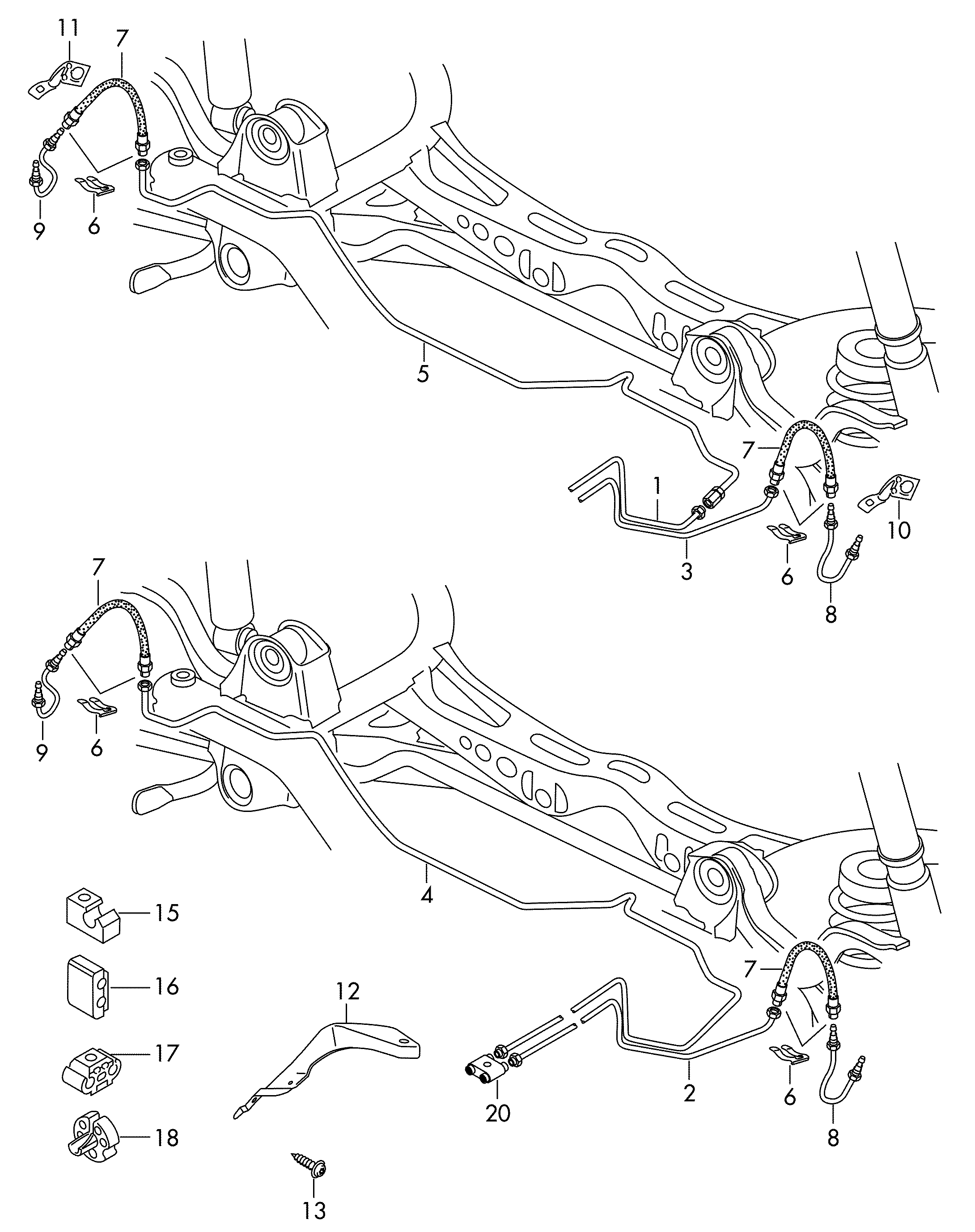

Scheme Brake pipe, brake hose rear fr.wheel drv Volkswagen Passat CC Coupe 2009-2012 EUR
