Brake pipe, brake hose rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C0614742B	Brake line from connecting piece to brake hose	999	Next
3	3C0614741Q	Brake line from connecting piece to brake hose, before 03.11.2008	999	Next
3	3C0614741AB	Brake line from connecting piece to brake hose, D 03.11.2008 and after	999	Next
5	3C0611782AB	Brake line from connecting piece to brake hose	999	Next
6	191611715	Retaining spring	999	Next
7	1K0611775C	Brake hose	999	Next
7	1K0611775C	Brake hose F 3C9E547 425	999	Next
7	5N0611775	Brake hose F 3C9E547 426	999	Next
8	3C0611763A	Brake pipe from brake hose to piston housing	999	Next
8	3C0611763A	Brake pipe from brake hose to piston housing F 3C9E547 425	999	Next
9	3C0611764A	Brake pipe from brake hose to piston housing	999	Next
9	3C0611764A	Brake pipe from brake hose to piston housing F 3D9E547 425	999	Next
10	1H0611797C	Bracket	999	Next
12	8K0611797D	Clip	999	Next
13	1J0611853	Spacer sleeve	999	Next
14	5N0611847	Retainer for brake hose	999	Next
14	5N0611848	Retainer for brake hose	999	Next
17	1H0611797C	Bracket	999	Next

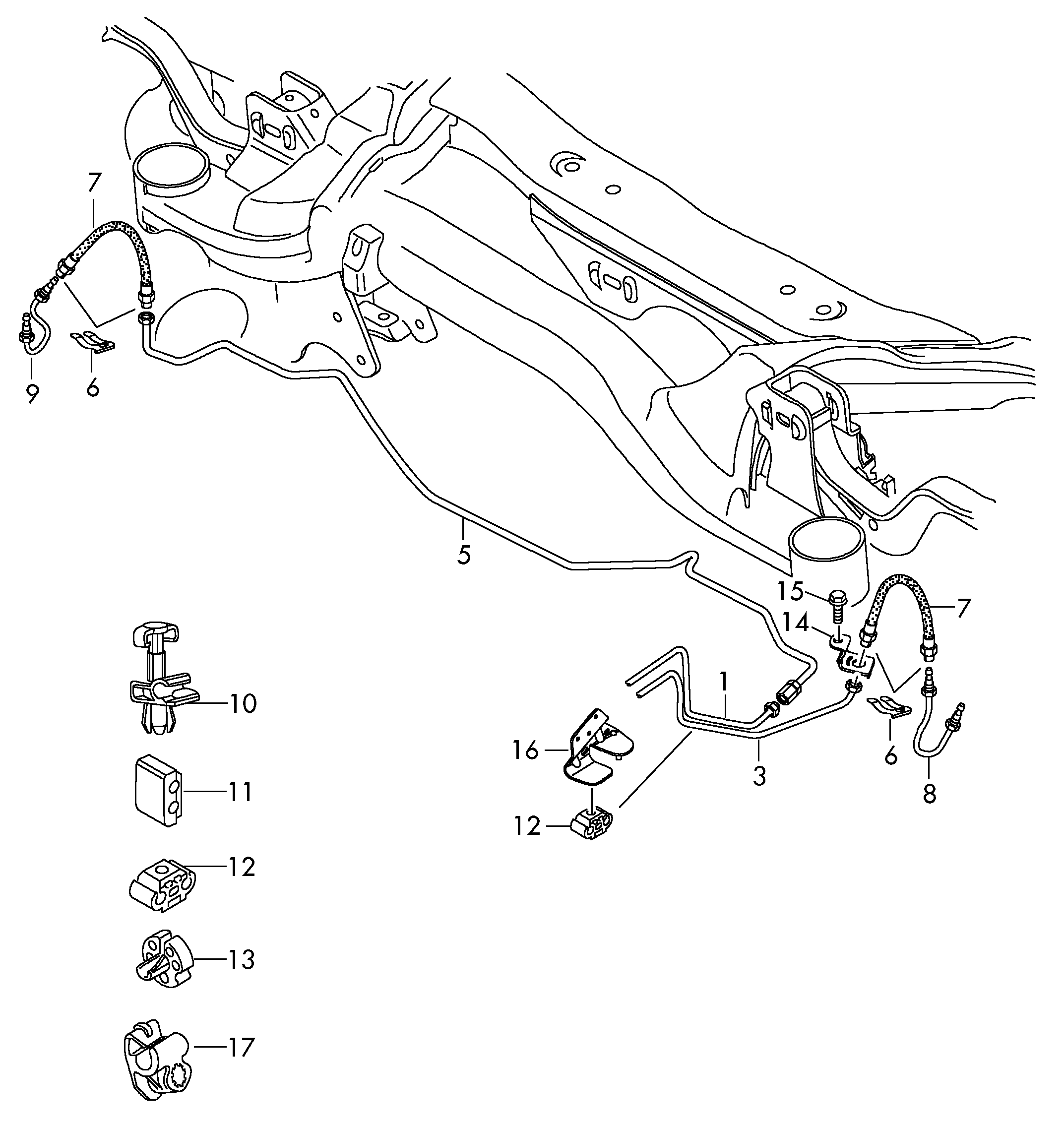

Scheme Brake pipe, brake hose rear 4motion Volkswagen Passat CC Coupe 2009-2012 EUR
