Brake pipe, brake hose front rhd Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K2614739K	Brake pipe from brake master cylinder to hydraulics	999	Next
2	1K2614740J	Brake pipe from brake master cylinder to hydraulics	999	Next
3	1K2614723F	Brake pipe from hydraulics to brake hose	999	Next
4	1K2614724M	Brake pipe from hydraulics to brake hose	999	Next
5	1K2614725D	Brake line from distributor to connecting piece	999	Next
6	1K2614726B	Brake line from distributor to connecting piece	999	Next
7	1K0611701K	Brake hose	999	Next
8	1K0611842D	Retainer for brake hose	999	Next
9	191611715	Retaining spring	999	Next
10	N90245210	Hex collared bolt M6X10	999	Next
11	1K0611841F	Retainer for brake hose	999	Next
12	1K0611845B	Retainer for brake hose	999	Next
13	1K0611845B	Retainer for brake hose	999	Next
14	1K0611751	Grommet	999	Next
15	3C2611716	Cover for brake pipes	999	Next
16		Cover for brake pipes not for this model	999	Next
20	8K0611797D	Clip	999	Next
21		Spacer holder not for this model	999	Next

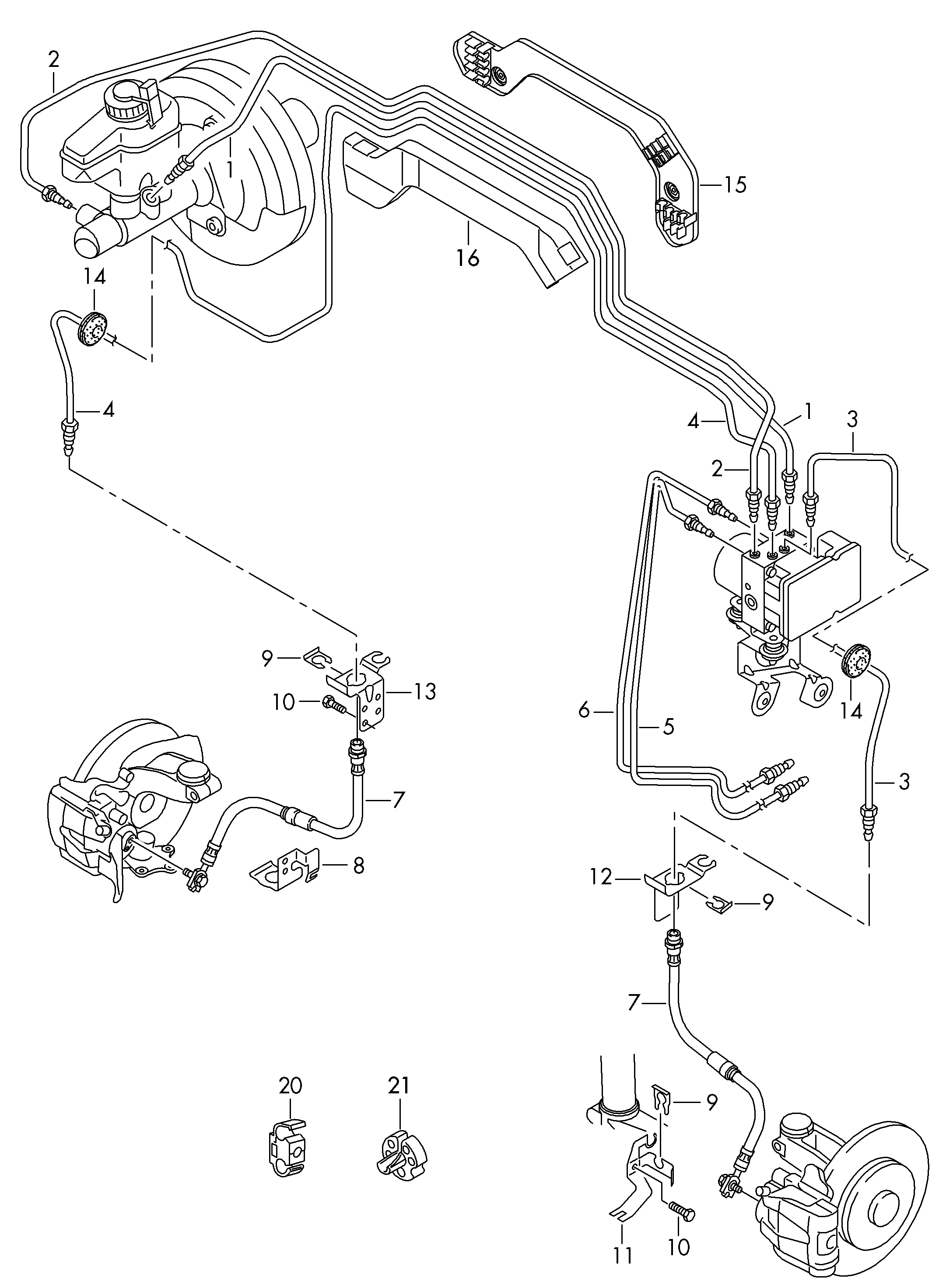

Scheme Brake pipe, brake hose front rhd Volkswagen Golf Plus 2012-2014 EUR
