Brake and accel. lever mech. rhd Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K2721117G	Bracket for pedal cluster	999	Next
1	1K2721117H	Bracket for pedal cluster	999	Next
1	N 02300313	Hexagon collar nut self-locking	999	Next
1	N 02300313	Hexagon collar nut self-locking	999	Next
1	N 10642103	Hex collared bolt M8X25	999	Next
1	N 02300313	Hexagon collar nut self-locking M8	999	Next
1	1J0721169A	Support	999	Next
1	1J0721169A 909	Support natural colours	999	Next
1	1K0721169	Support	999	Next
1	1H0721179	Bearing shell	999	Next
1	3C2721142C	Brake pedal	999	Next
1	3C2721142E	Brake pedal	999	Next
1	3C2723142C	Brake pedal	999	Next
1	3C2723142E	Brake pedal	999	Next
1	1K0721359	Bearing bush	999	Next
1	WHT002483	Bearing pin 15H9X45.44	999	Next
1	1K0721173B	Cap	999	Next
1	1K0721173B 9B9	Cap satin black	999	Next
1	1K0721131	Cap for foot brake pedal	999	Next
1	1K0721131 4J4	Cap brushed aluminium	999	Next
1	1K0723173B	Cap	999	Next
1	1K0723173B 9B9	Cap satin black	999	Next
1	1K0723131	Cap for foot brake pedal	999	Next
1	1K0723131 4J4	Cap for foot brake pedal brushed aluminium	999	Next
1	N 10198505	Hexagon bolt M8X70	999	Next
1	1K2721913F	Crash member	999	Next
1	1K2721913AA	Crash member	999	Next
1	1K2721503Q	Accelerator pedal with electronic module	999	Next
1		Hex collared bolt	999	Next
1	1K2721503AP	Accelerator pedal with electronic module	999	Next
1	1K2721503AR	Accelerator pedal with electronic module	999	Next
1	1K2721503AC	Accelerator pedal with electronic module	999	Next
1	1K2721503AP	Accelerator pedal with electronic module	999	Next
1	1K2721503AH	Accelerator pedal with electronic module	999	Next
1	1K2723503AL	Accelerator pedal with electronic module	999	Next
1	1K2723503AP	Accelerator pedal with electronic module	999	Next
1	1K2723503AR	Accelerator pedal with electronic module	999	Next
1	1K2723503AC	Accelerator pedal with electronic module	999	Next
1	1K2723503AP	Accelerator pedal with electronic module	999	Next
1	1K2723503AH	Accelerator pedal with electronic module	999	Next
1	1K0721989	Cap	999	Next
1	N 90833202	Hexagon bolt M6X22	999	Next
1	3C2721187C	Retainer for accelerator pedal	999	Next
1	N 90878603	Hexagon collar nut self-locking M6	999	Next
1	G 052142A2	Poly lubricant 400G	999	Next
1	D 185400A3	Locking fluid	999	Next
1	1K0723753	Bungs	999	Next
1		Damping brake pedal not for this model	999	Next
1		Clamping washer not for this model	999	Next

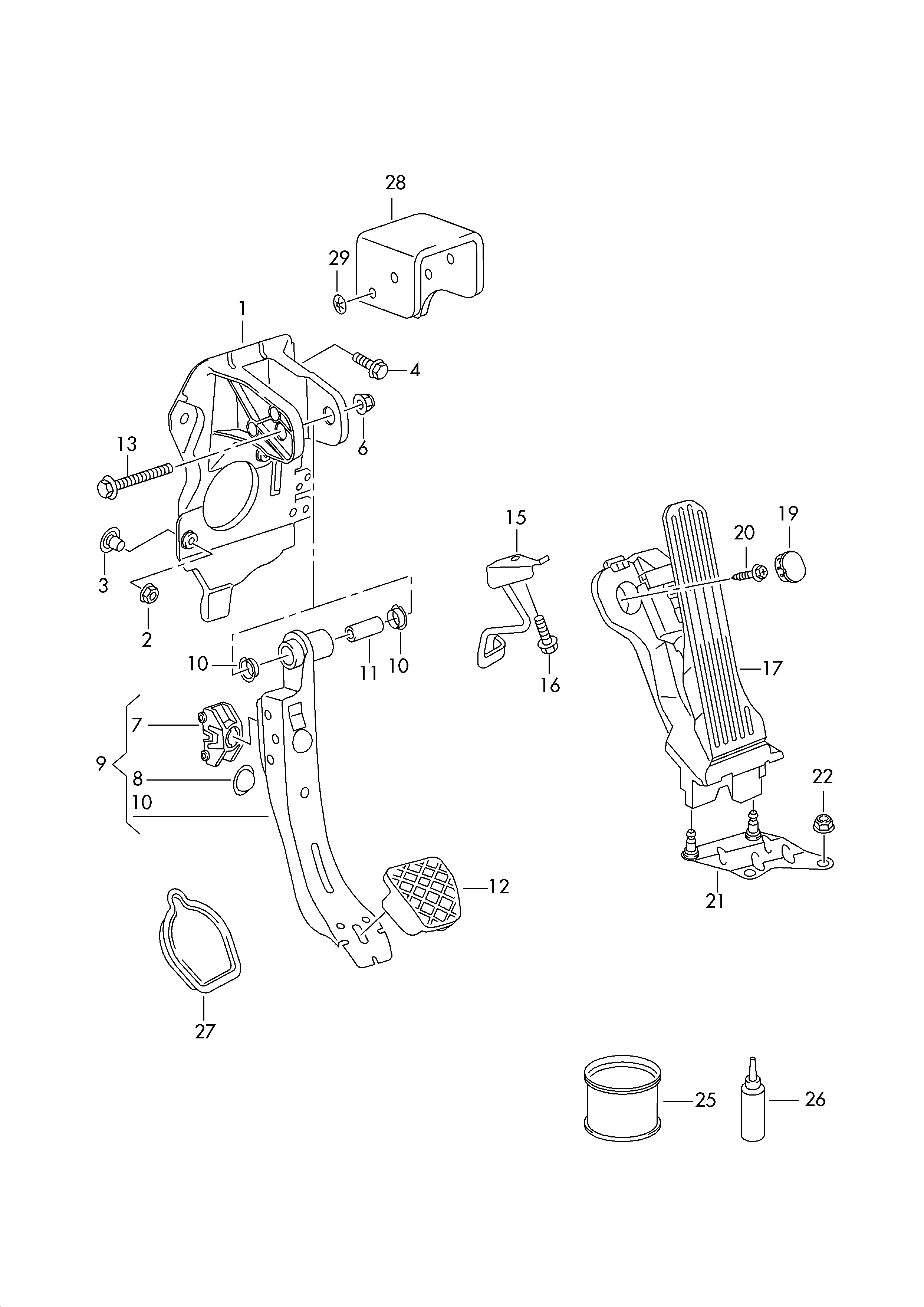

Scheme Brake and accel. lever mech. rhd Volkswagen Tiguan 2010-2017 EUR
