Brake and accel. lever mech. rhd Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6R2721115	Bracket for pedal cluster	999	Next
1	6RF721115	Bracket for pedal cluster	999	Next
2	N02300311	Hexagon nut, self-locking M6	999	Next
4		Crash member not for this model	999	Next
5		Socket head collared bolt with inner multipoint head not for this model	999	Next
7	N01037013	Hexagon bolt	999	Next
7	6RF721325	Bearing shaft	999	Next
8	N02300313	Hexagon collar nut self-locking M8	999	Next
10	6R2723142	Brake pedal	999	Next
10	6RF723141	Brake pedal	999	Next
11	6Q0723173A	Cap	999	Next
11	6Q0723173A01C	Cap satin black	999	Next
11	6RF723173	Cap	999	Next
11	6RF7231739B9	Cap satin black	999	Next
12	WHT000671	Bearing pin	999	Next
12	6RF721181	Bearing pin	999	Next
13	1J0721153	Bearing bush	999	Next
13	6RF721153	Bearing bush	999	Next
13A	6Q0721153	Bearing bush	999	Next
14	N02300213	Hexagon nut, self-locking M6	999	Next
15	6R2723503C	Accelerator pedal with electronic module	999	Next
16	1J0723549B	Kick down actuator	999	Next
20		Cap for accelerator pedal not for this model	999	Next
25	1H0721179	Bearing shell	999	Next
26	1J0721169A	Support	999	Next
26	1J0721169A909	Support natural colours	999	Next
26	6RF721165	Support contains additional positions:	999	Next
30	1J0723753A	Bungs cross panel	999	Next
50	G052142A2	Poly lubricant 400G	999	Next
51	D185400A3	Locking fluid	999	Next

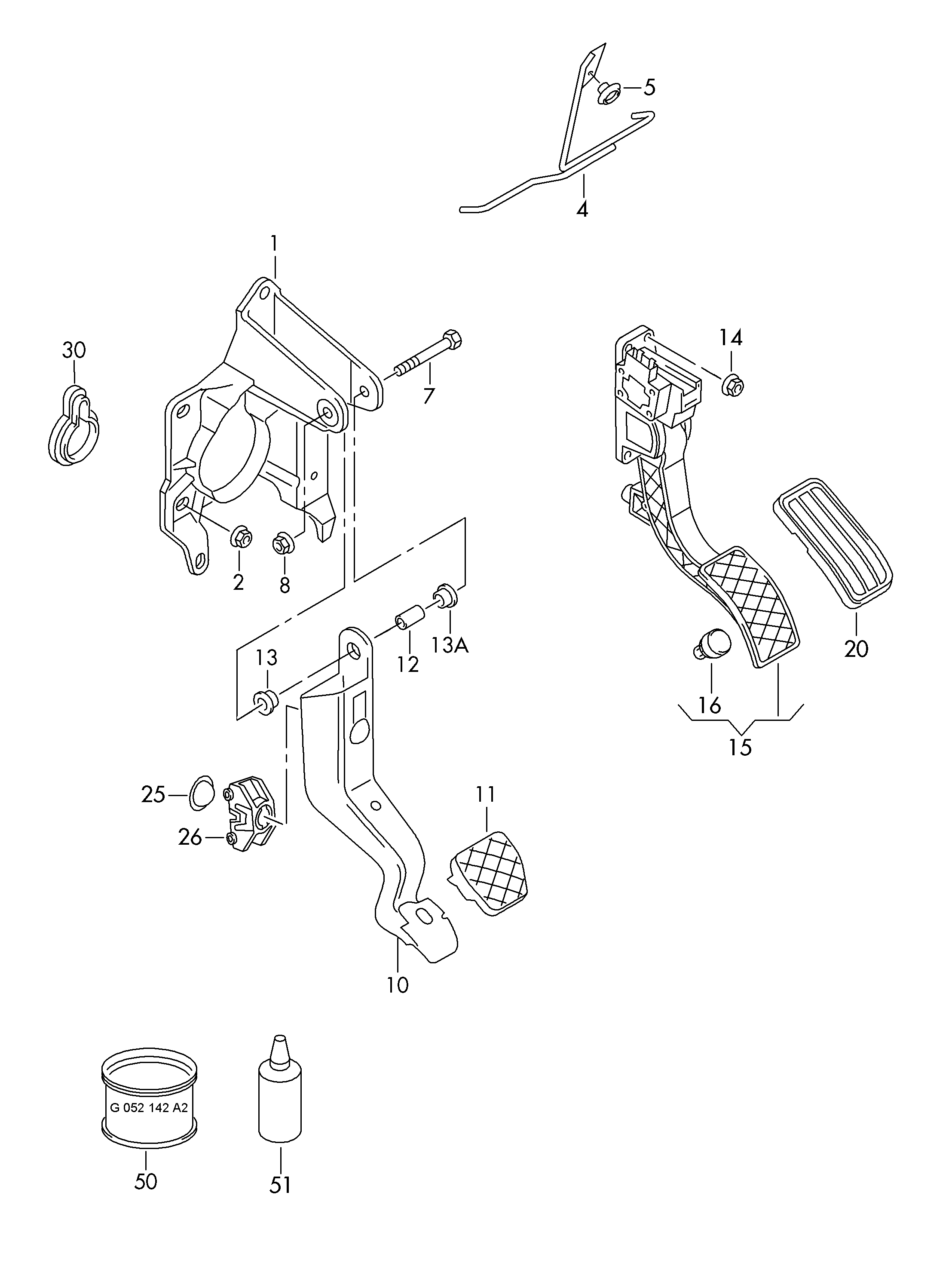

Scheme Brake and accel. lever mech. rhd Volkswagen Polo 2013-2017 EUR
