Brake and accel. lever mech. rhd Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K2721117G	Bracket for pedal cluster	999	Next
2	N02300313	Hexagon collar nut self-locking M8	999	Next
6	N02300313	Hexagon collar nut self-locking M8	999	Next
7	1J0721169A	Support	999	Next
7	1J0721169A909	Support natural colours	999	Next
8	1H0721179	Bearing shell	999	Next
9	3C2721142C	Brake pedal	999	Next
9	3C2723142C	Brake pedal	999	Next
10	1K0721359	Bearing bush	999	Next
11	WHT002483	Bearing pin 15H9X45.44	999	Next
12	1K0721173B	Cap for foot brake pedal	999	Next
12	1K0721173B9B9	Cap for foot brake pedal satin black	999	Next
12	1K0723173B	Cap for foot brake pedal	999	Next
12	1K0723173B9B9	Cap for foot brake pedal satin black	999	Next
13	N10198505	Hexagon bolt M8X70	999	Next
15	3C2721913C	Crash member	999	Next
16	N10109210	Hex collared bolt M8X30	999	Next
17	1K2721503M	Accelerator pedal with electronic module, before 03.05.2010	999	Next
17	1K2721503T	Accelerator pedal with electronic module, before 27.06.2011	999	Next
17	1K2721503AE	Accelerator pedal with electronic module, D 27.06.2011 and after	999	Next
17	1K2723503M	Accelerator pedal with electronic module, before 03.05.2010	999	Next
17	1K2723503T	Accelerator pedal with electronic module	999	Next
19	1K0721989	Cap	999	Next
20	N90833202	Hexagon bolt M6X22	999	Next
21	3C2721187C	Retainer for accelerator pedal	999	Next
22	N02300213	Hexagon nut, self-locking M6	999	Next
25	G052142A2	Poly lubricant 400G	999	Next
26	D185400A3	Locking fluid	999	Next
26	D185400A2	Locking fluid 10ML	999	Next

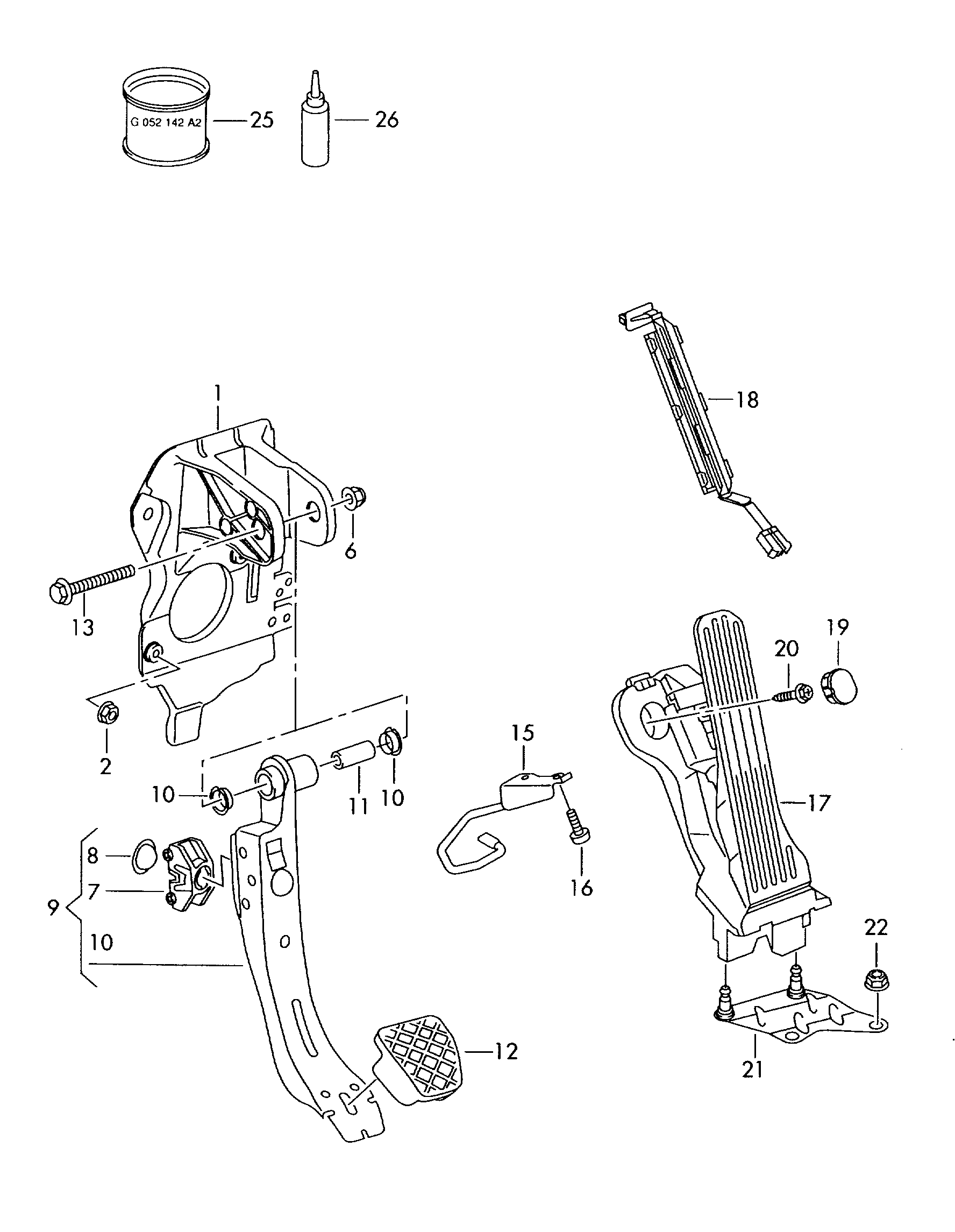

Scheme Brake and accel. lever mech. rhd Volkswagen Passat CC Coupe 2009-2012 EUR
