Brake and accel. lever mech. lhd Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1721115N	Bracket for pedal cluster	999	Next
2	N02300313	Hexagon collar nut self-locking M8	999	Next
6	N02300313	Hexagon collar nut self-locking M8	999	Next
7	1J0721169A	Support	999	Next
7	1J0721169A909	Support natural colours	999	Next
8	1H0721179	Bearing shell	999	Next
9	1K1721142E	Brake pedal	999	Next
9	1K1723142F	Brake pedal	999	Next
10	1K0721359	Bearing bush	999	Next
11	WHT002483	Bearing pin 15H9X45.44	999	Next
12	1K0721173B	Cap for foot brake pedal	999	Next
12	1K0721173B9B9	Cap for foot brake pedal satin black	999	Next
12	1K0723173B	Cap for foot brake pedal	999	Next
12	1K0723173B9B9	Cap for foot brake pedal satin black	999	Next
13	N10708201	Hexagon bolt M8X62	999	Next
15	1K1721913E	Crash member	999	Next
17	1K1721503AA	Accelerator pedal with electronic module, before 03.05.2010	999	Next
17	1K1721503L	Accelerator pedal with electronic module, before 03.05.2010	999	Next
17	1K1721503AB	Accelerator pedal with electronic module, D 03.05.2010 - 27.06.2011	999	Next
17	1K1721503AL	Accelerator pedal with electronic module, D 27.06.2011 and after	999	Next
17	1K1723503L	Accelerator pedal with electronic module, before 03.05.2010	999	Next
17	1K1723503AA	Accelerator pedal with electronic module, before 27.06.2011	999	Next
17	1K1723503AJ	Accelerator pedal with electronic module	999	Next
18		Retainer for accelerator pedal not for this model	999	Next
19	1K0721989	Cap	999	Next
20	N90833202	Hexagon bolt M6X22	999	Next
21	1K0723549	Kick down actuator included in position: 17	999	Next
22		Housing not for this model	999	Next
23		Seal not for this model	999	Next
25	G052142A2	Poly lubricant 400G	999	Next
26	D185400A3	Locking fluid	999	Next
26	D185400A2	Locking fluid 10ML	999	Next

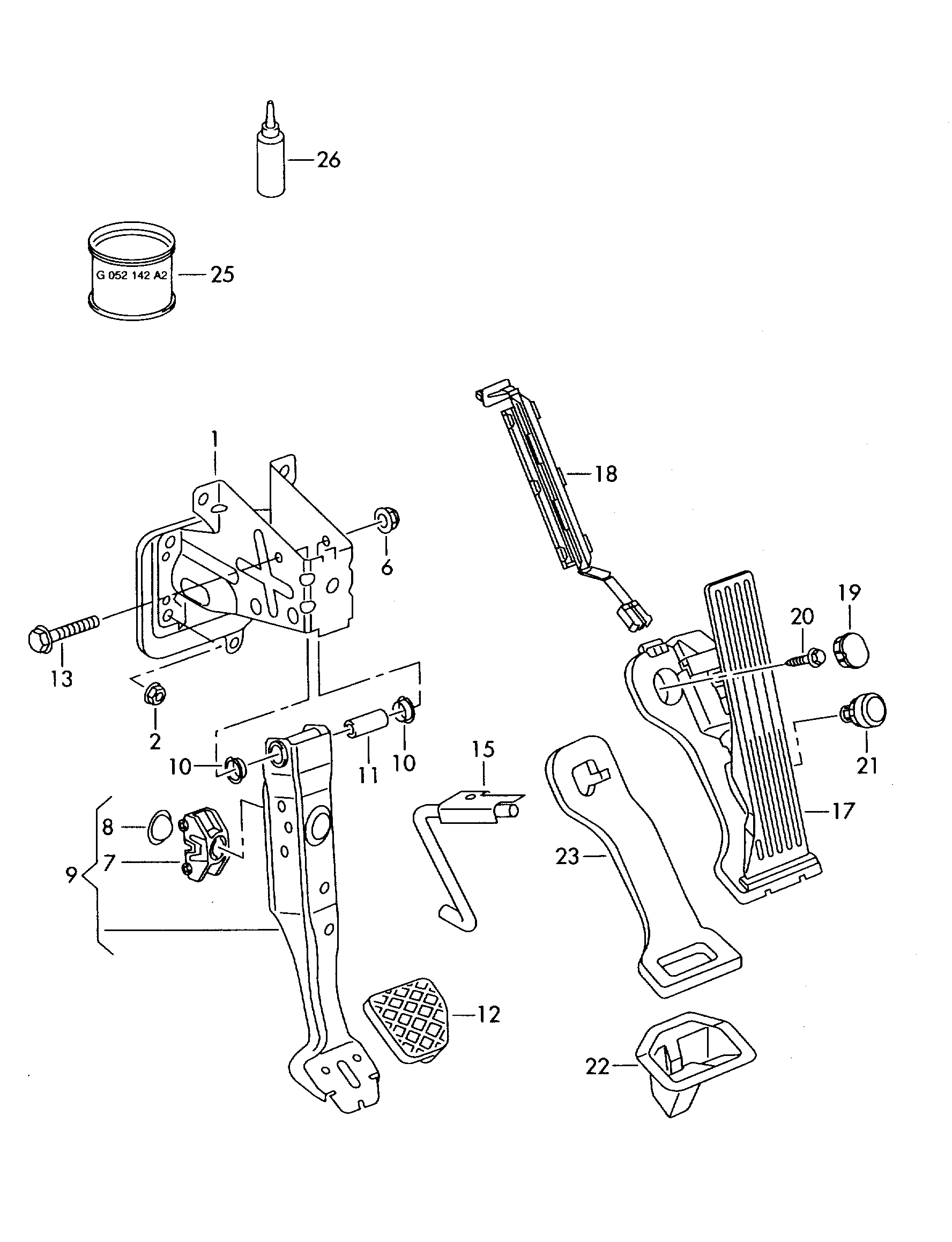

Scheme Brake and accel. lever mech. lhd Volkswagen Passat CC Coupe 2009-2012 EUR
