Brake and accel. lever mech. lhd Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1721115N	Bracket for pedal cluster	999	Next
2	N02300313	Hexagon collar nut self-locking M8	999	Next
6	N02300313	Hexagon collar nut self-locking M8	999	Next
7	1J0721169A	Support additionally to be used items: 8	999	Next
7	1J0721169A909	Natural colours support additionally to be used items: 8	999	Next
8	1H0721179	Bearing shell	999	Next
9	1K1721142E	Brake pedal	999	Next
9	1K1723142F	Brake pedal	999	Next
10	1K0721359	Bearing bush	999	Next
11	WHT002483	Bearing pin 15H9X45.44	999	Next
12	1K0721173B	Cap for foot brake pedal	999	Next
12	1K0721173B9B9	Cap for foot brake pedal satin black	999	Next
12	1K0721131	Cap for foot brake pedal	999	Next
12	1K07211314J4	Cap for foot brake pedal brushed aluminium	999	Next
12	1K0723173B	Cap for foot brake pedal	999	Next
12	1K0723173B9B9	Cap for foot brake pedal satin black	999	Next
12	1K0723131	Cap for foot brake pedal	999	Next
12	1K07231314J4	Cap for foot brake pedal brushed aluminium	999	Next
13	N10708201	Hexagon bolt M8X62	999	Next
15	1K1721913K	Crash member M6	999	Next
17	1K1721503BC	Accelerator pedal with electronic module	999	Next
17	1K1721503BD	Accelerator pedal with electronic module	999	Next
17	1K1721503AF	Accelerator pedal with electronic module	999	Next
17	1K1721503AR	Accelerator pedal with electronic module	999	Next
17	1K1723503AS	Accelerator pedal with electronic module	999	Next
17	1K1723503AD	Accelerator pedal with electronic module	999	Next
17	1K1723503AT	Accelerator pedal with electronic module	999	Next
17	1K1723503AN	Accelerator pedal with electronic module	999	Next
19	1K0721989	Cap	999	Next
20	N90833202	Hexagon bolt M6X22	999	Next
21		Kick down actuator not for this model	999	Next
22		Housing not for this model	999	Next
23		Seal not for this model	999	Next
25	G052142A2	Poly lubricant 400G	999	Next
26	D185400A3	Locking fluid	999	Next
28	5N1721793	Noise insulation on brake pedal	999	Next
29	N10726401	Clamping washer B-6X20	999	Next

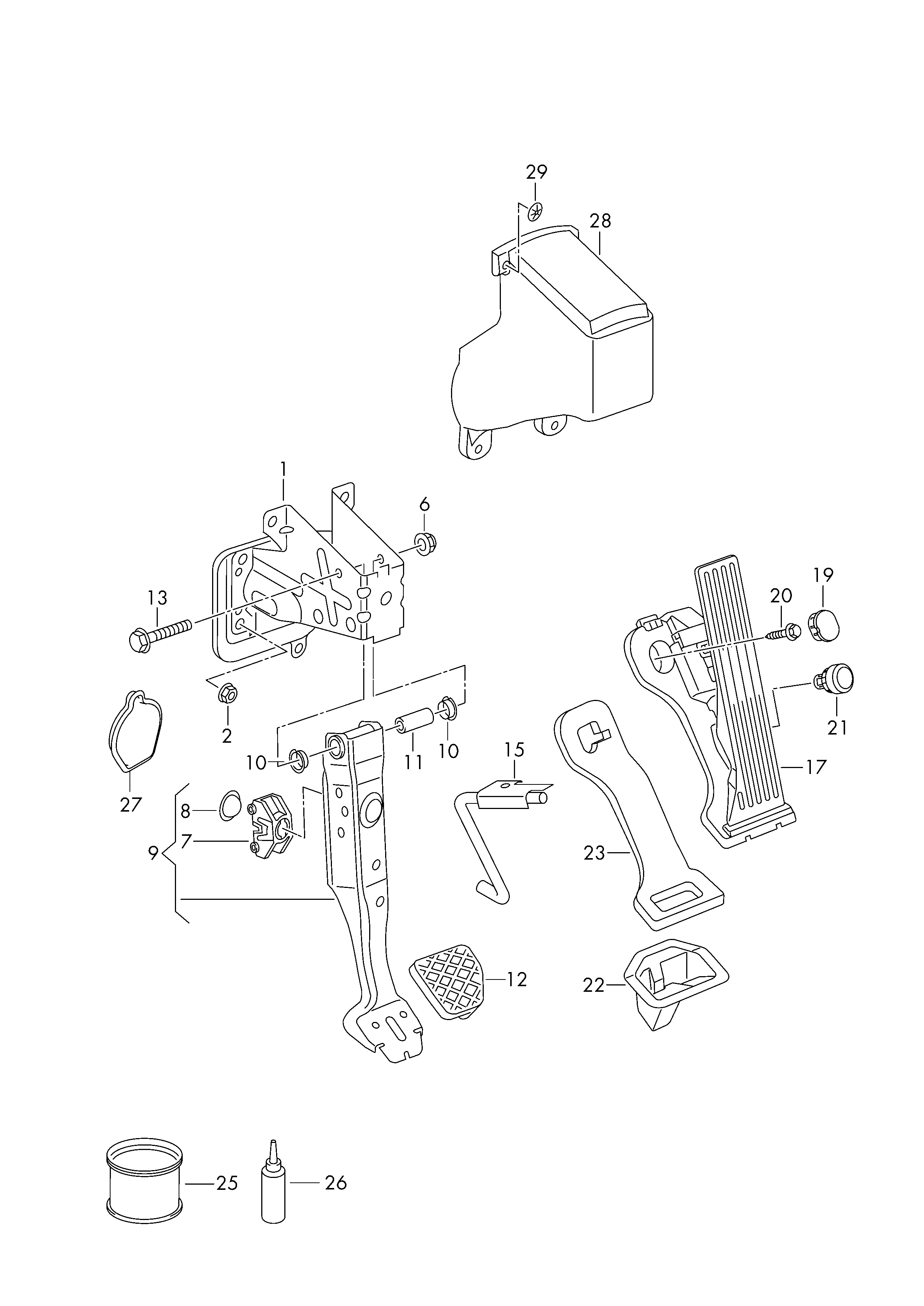

Scheme Brake and accel. lever mech. lhd Volkswagen Golf Plus 2012-2014 EUR
