Bottom plate rear Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
-	800981	Sheet metal plate 200X1500X0,8	999	Next
-	000800981A	Sheet metal plate 300X1500X0,8	999	Next
-	000800981B	Sheet metal plate 500X1500X0,8	999	Next
-	000800981C	Sheet metal plate 800X1500X0,8	999	Next
-	D007600A1	Inox spray 400ML	999	Next
-	D007500A2	Zinc spray 400ML	999	Next
1	1K0813111A	Bottom plate	999	Next
2	1K0803531	Cross member for floor	999	Next
3	1K0813146B	Cross reinforcement	999	Next
4	1K0813173	Filler plate for wheel housing	999	Next
4	1K0813174	Filler plate for wheel housing	999	Next
5	1K0813545H	Bracket for child seat	999	Next
5	1K0813545D	Bracket for child seat	999	Next
10	1K0803274A	Bracket mount for spare wheel	999	Next
11		Bottom plate discont. / replacement item: 1	999	Next
12		Sectional part - floor panel discont. / replacement item: 1	999	Next
13		Sectional part - floor panel discont. / replacement item: 1	999	Next
20	1K0803179	Reinforcement for cross member	999	Next
21	1K8813721A	Mounting for backrest not for this model	999	Next
22	1K8813707	Support not for this model	999	Next

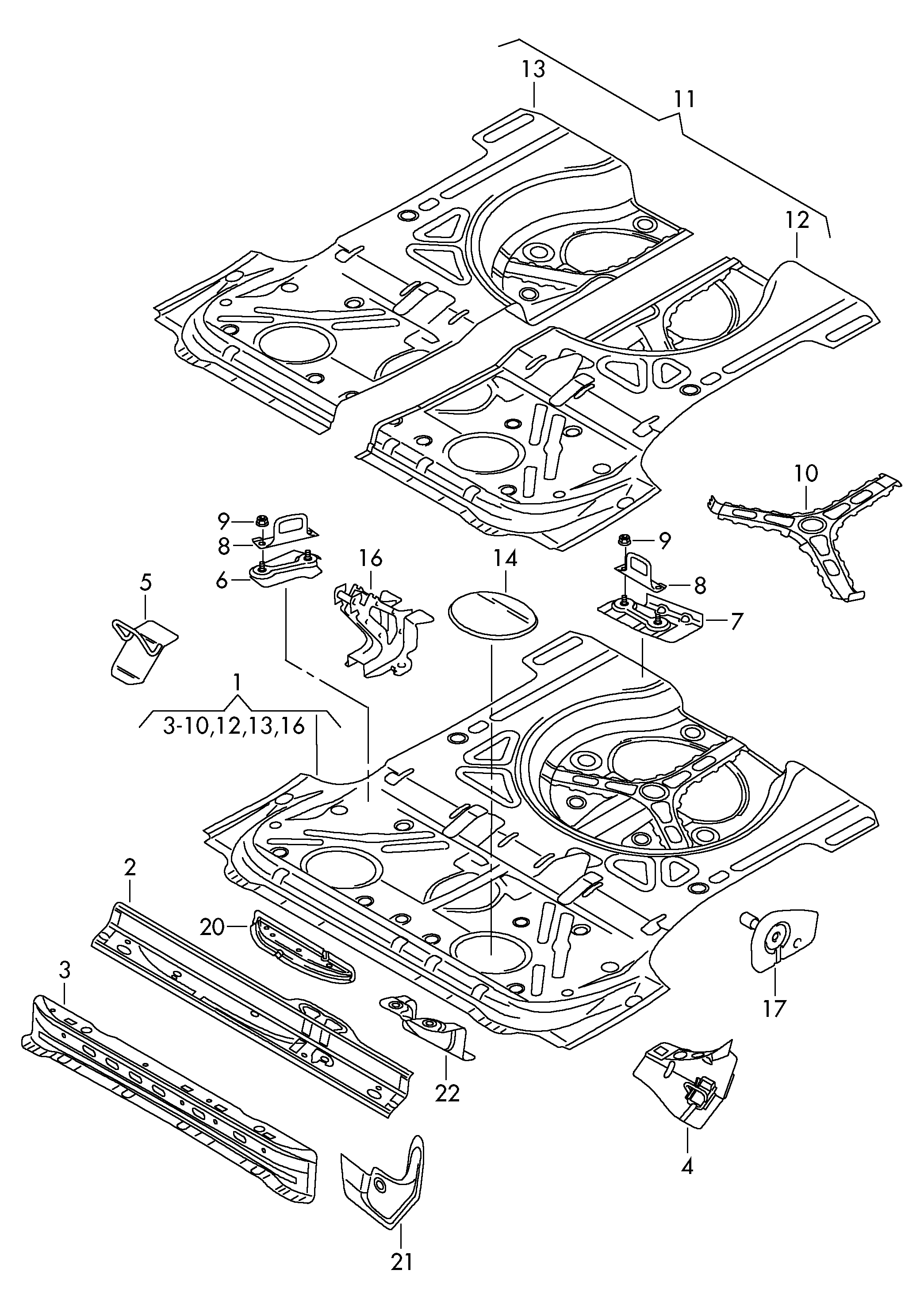

Scheme Bottom plate rear Volkswagen Golf Plus 2012-2014 EUR
