Bottom plate front Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0801251	Side member	999	Next
1	5N0801252	Side member	999	Next
1	5N0802128	Reinforcement for tunnel	999	Next
1	5N0802117	Reinforcement for tunnel	999	Next
1	N 90761103	Hexagon collar nut M8	999	Next
1	5N0802381	Console	999	Next
1	5N0802382	Console	999	Next
1	5N0802569	Bracket for seat	999	Next
1	5N0802570	Bracket for seat	999	Next
1	5N0803097	Connecting plate	999	Next
1	5N0803098	Connecting plate	999	Next
1	5N0803129	Reinforcement	999	Next
1	5N0803130	Reinforcement	999	Next
1	3C0803205	Bottom plate	999	Next
1	3C0803206	Bottom plate	999	Next
1	5N0803231	Seat support	999	Next
1	5N0803234	Seat support	999	Next
1	N 90767405	Rivetted cap nut M6	999	Next
1	5N0803485	Cross member for floor	999	Next
1	3C0803729	Side member extension	999	Next
1	3C0803730	Side member extension	999	Next
1	5N0803785	Retaining plate	999	Next
1	5N0804421	Reinforcement for tunnel	999	Next
1	N 91066901	Bolt, hex. hd. with shoul. (combi) M8X38	999	Next
1	5N0804435	Threaded plate	999	Next
1	5N0804436	Threaded plate	999	Next
1	N 90652602	Weld screw 5X16	999	Next

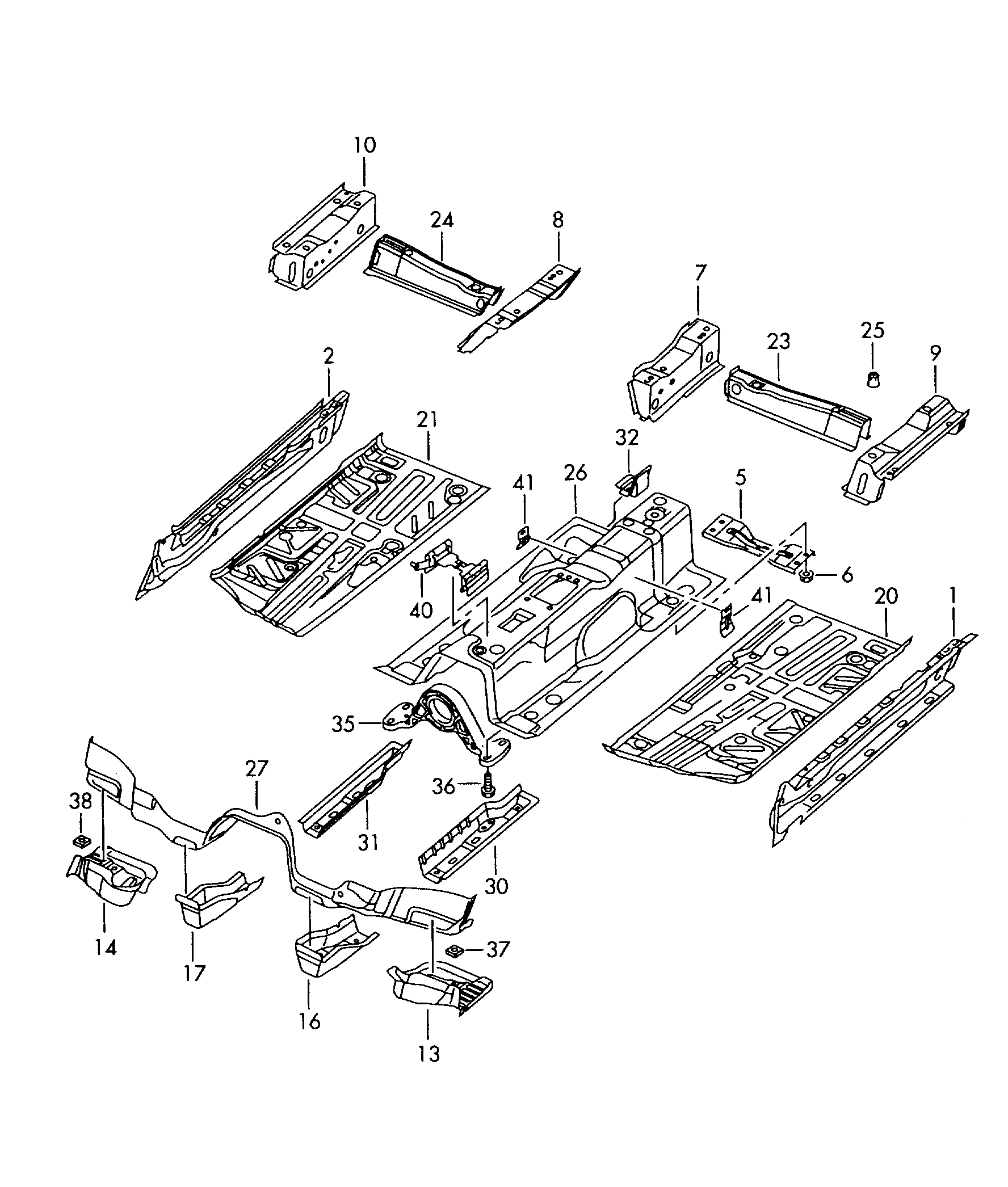

Scheme Bottom plate front Volkswagen Tiguan 2010-2017 EUR
