Bottom plate front Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
-	800981	Sheet metal plate 200X1500X0,8	999	Next
-	000800981A	Sheet metal plate 300X1500X0,8	999	Next
-	000800981B	Sheet metal plate 500X1500X0,8	999	Next
-	000800981C	Sheet metal plate 800X1500X0,8	999	Next
-	D007600A1	Inox spray 400ML	999	Next
-	D007500A2	Zinc spray 400ML	999	Next
2	1K0802128C	Reinforcement for tunnel	999	Next
5	1K0802307B	Reinforce. for lower side mem.	999	Next
5	1K0802308B	Reinforce. for lower side mem.	999	Next
8	1K0802381C	Support seat support	999	Next
8	1K0802382B	Support seat support	999	Next
10	1K0802569B	Mounting plate seat support	999	Next
10	1K0802570C	Mounting plate seat support	999	Next
13	1K0803073A	Bottom plate	999	Next
14	1K0803097A	Connecting piece	999	Next
14	1K0803098A	Connecting piece	999	Next
16	1K0803205	Sectional part - floor panel	999	Next
17	1K0803206	Sectional part - floor panel	999	Next
18	1K0803225A	Cover plate	999	Next
18	1K0803226A	Cover plate	999	Next
19	1K0803233A	Seat support	999	Next
19	1K0803234A	Seat support	999	Next
20	1K0803489A	Reinforcement for floor panel	999	Next
22	1T0803557A	Support	999	Next
23	1K0803561A	Reinforcement for tunnel	999	Next
23	1K0803561	Reinforcement for tunnel	999	Next
23	1K0803562A	Reinforcement for tunnel	999	Next
23	1K0803562	Reinforcement for tunnel	999	Next
25	1K0804213	Intermediate plate side member	999	Next
25	1K0804214	Intermediate plate side member	999	Next
26	1K0804455	Side member extension	999	Next
26	1K0804456	Side member extension	999	Next
27	1K0804489A	Bottom plate	999	Next
29	1K0804797A	Corner part	999	Next
29	1K0804798A	Corner part	999	Next
30	1K0804421C	Reinforcement for tunnel	999	Next
31	N90761102	Hexagon collar nut M8	999	Next
32		Bracket not for this model	999	Next

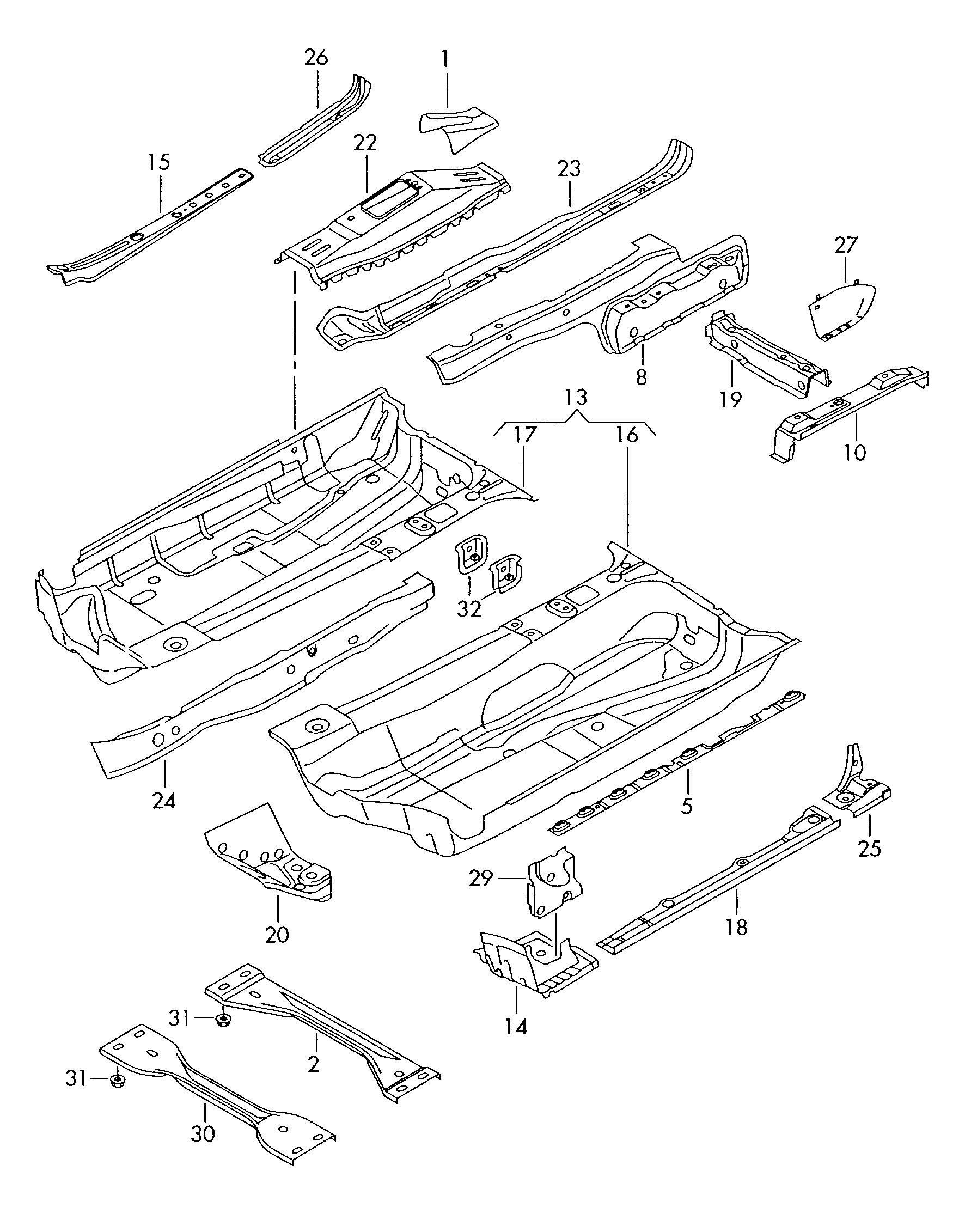

Scheme Bottom plate front Volkswagen Golf Plus 2012-2014 EUR
