Boot floor plate, wheel housing with side member rear square back Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6RG813114	Luggage compart. floor plate with spare wheel recess	999	Next
1A	800981	Sheet metal plate 200X1500X0,8	999	Next
1A	000800981A	Sheet metal plate 300X1500X0,8	999	Next
1A	000800981B	Sheet metal plate 500X1500X0,8	999	Next
1A	000800981C	Sheet metal plate 800X1500X0,8	999	Next
2	6RH813111	Boot floor plate	999	Next
3	6RH809851	Wheel housing	999	Next
3	6RH809852	Wheel housing	999	Next
4	6Q0803961	Cover for sender	999	Next
5	6RG803501	Side member	999	Next
5A	6RG803502	Side member	999	Next
6	6Q0803505B	Side member can be used as a sub-part	999	Next
6	6Q0803506B	Side member can be used as a sub-part	999	Next
7	6R0803447	Mounting block	999	Next
7	6R0803448	Mounting block	999	Next
8	6Q0804731B	Bearing bracket for rear axle modify in workshop	999	Next
8	6Q0804732B	Bearing bracket for rear axle modify in workshop	999	Next
9	6Q6804743C	Reinforcement	999	Next
9	6Q6804744C	Reinforcement	999	Next
11	6Q0803509A	Connecting plate for side section - rear cross panel	999	Next
11	6Q0803510B	Connecting plate for side section - rear cross panel	999	Next
12	6R6809411C	Wheel housing	999	Next
12	6R6809412C	Wheel housing	999	Next
14	6R0803531	Cross member	999	Next
15	6R0803663	Cover for towing eye	999	Next
15	6R08036639B9	Cover for towing eye satin black	999	Next
17	6Q0803616	Tow hitch	999	Next
18	6Q0813146	Cross reinforcement	999	Next
20	6R0813087	Support plate	999	Next
20	6R0813088	Support plate	999	Next
21	1J0804299	Lashing eye	999	Next
23	6Q0813173C	Web plate wheel housing	999	Next
23	6Q0813174C	Web plate wheel housing	999	Next
24	6Q0813187C	Hinge half	999	Next
26	6R6813227B	Cross panel	999	Next
26	6R6813228B	Cross panel	999	Next
28	6Q6813259	Closing element	999	Next
28	6Q6813260	Closing element	999	Next
29	6Q6804749C	Support	999	Next
29	6Q6804750C	Support	999	Next
30	6R0813541	Isofix base	999	Next
30	6R0813542	Isofix base	999	Next
31	6Q0886161C	Bearing bracket for rear seat back rest	999	Next
31	6Q0886162C	Bearing bracket for rear seat back rest	999	Next
33	6Q0804405	Retainer for activated charcoal filter or fuel filter	999	Next
34	N90243001	O-ring A18X40	999	Next
35		Bracket	999	Next

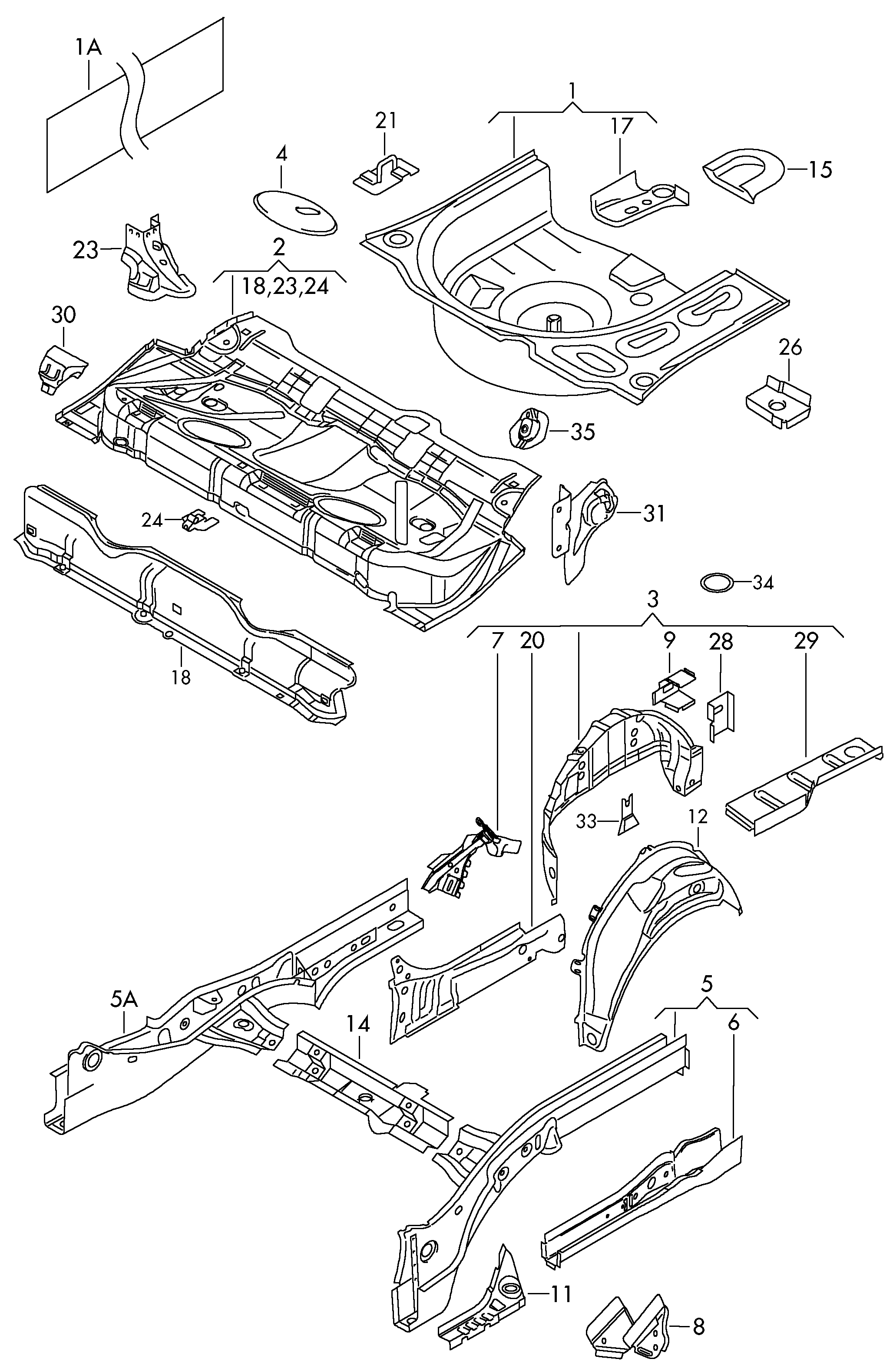

Scheme Boot floor plate, wheel housing with side member rear square back Volkswagen Polo 2013-2017 EUR
