Bonnet Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C8823031B	Bonnet	999	Next
1	3C8823031A	Bonnet	999	Next
2	3C8823359	Gas filled strut	999	Next
3	3C8823480A	Catch hook	999	Next
3	3C8823480	Catch hook	999	Next
4	N90820401	Bolt, hex. hd. (combi.) self-locking M6X16	999	Next
6	3C8823301A	Lid hinge	999	Next
6	3C8823302A	Lid hinge	999	Next
7	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
8	1J0827713	Bungs 9,3	999	Next
9	N10226501	Bungs 30	999	Next
10	3C0823723	Seal for water box	999	Next
-	D381AL1A2	Aluminium foil, self-adhesive 'order quantity 10' modify in workshop IN SERIE 3C0 825 757 A	999	Next
11	3C8823729	Filler piece	999	Next
11	3C8823730A	Filler piece	999	Next
12	3C1823535	Lid lock cable	999	Next
12	3C2823535	Lid lock cable	999	Next
13	3C1823531	Lid lock cable	999	Next
13	3C2823531A	Lid lock cable	999	Next
13	3C2823531	Lid lock cable	999	Next
15	867827500A	Stop buffer 30X22/12	999	Next
16	1T0823567	Clip	999	Next
17	1K0823591B	Grommet	999	Next
18	3C0823544	Grommet	999	Next
20	3C8823707A	Gasket for flap	999	Next
20	3C8823707A9B9	Gasket for flap satin black	999	Next
20	3C8823707	Gasket for flap	999	Next
20	3C88237079B9	Gasket for flap satin black	999	Next
21	3D0823717	Clip 13X5,4	999	Next
23	1K1823633B	Bracket	999	Next
23	3C2823633A	Bracket	999	Next
24	1J1823533C	Grip for lid lock cable	999	Next
24	1J1823533C9B9	Grip for lid lock cable satin black	999	Next
24	3C2823533	Grip for lid lock cable	999	Next
24	3C28235339B9	Grip for lid lock cable satin black	999	Next
24	3C2823533	Grip for lid lock cable	999	Next
24	3C2823533B41	Grip for lid lock cable satin black	999	Next
25	N90833801	Expanding nut 4,8	999	Next
26	N90974701	Hexagon socket head panel bolt 5X16	999	Next
27	3C1823509H	Lid lock with micro- switch	999	Next
27	3C1823509G	Lid lock with micro- switch	999	Next
27	3C1823509D	Lid lock with micro- switch	999	Next
27	3C2823509B	Lid lock with micro- switch	999	Next
28	3C0953236C	Micro switch	999	Next
28	3C0953236B	Micro switch	999	Next
29	N90807301	Hexagon socket oval head bolt, self-locking M6X25	999	Next
30	WHT000425	Hexagon socket oval head bolt, self-locking M6X62	999	Next
31	3C0823187	Cover	999	Next
31A	3C1823187	Cover	999	Next
32	3C1823229A	Securing bracket	999	Next
32	3C2823229A	Securing bracket	999	Next
33	N90963202	Fillister hd. bolt 5X12	999	Next
34	3C1823755C	Cover	999	Next
34	3C2823756C	Cover	999	Next
35	3C0823747	Bungs	999	Next

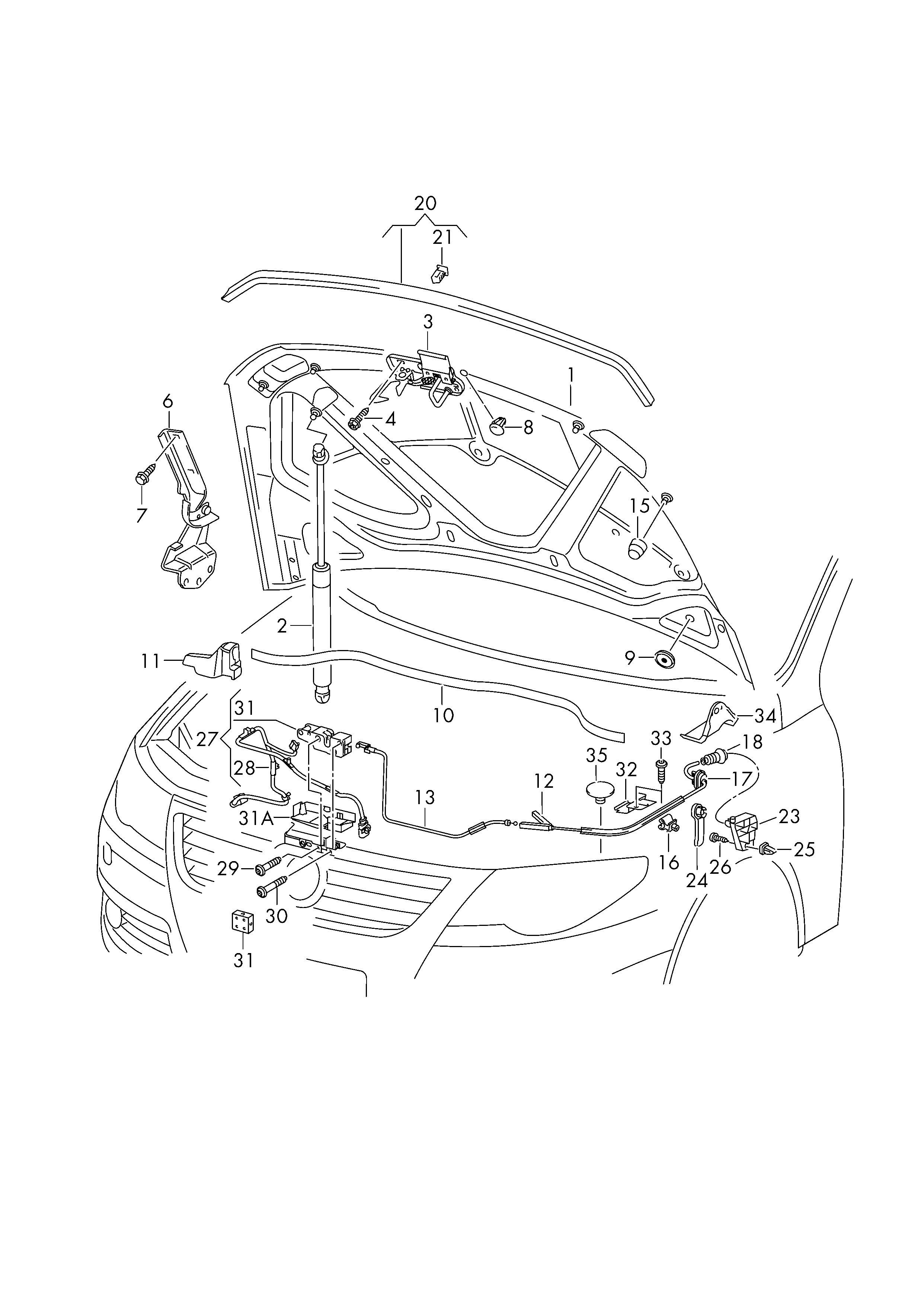

Scheme Bonnet Volkswagen Passat CC Coupe 2009-2012 EUR
