Bonnet front Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0823031D	Bonnet	999	Next
1	5N0823301A	Lid hinge	999	Next
1	5N0823302A	Lid hinge	999	Next
1	N 91079301	Hex collared bolt M8X16	999	Next
1	N 91079301	Hex collared bolt M8X16	999	Next
1	N 90999503	Hex collared bolt M6X25	999	Next
1	N 90999502	Hex collared bolt M6X25	999	Next
1	N 0200321	Bungs 6X0,8X7,5	999	Next
1	1K0823480	Catch hook	999	Next
1	N 90820401	Bolt, hex. hd. (combi.) self-locking M6X16	999	Next
1	5N0823363A	Rod	999	Next
1	5N0823363A	Rod	999	Next
1	5N0823363B	Rod	999	Next
1		Make up from: AKL 448 300 04	999	Next
1	3B0823499B	Stop buffer 23,5X22	999	Next
1	5N0823509A	Bonnet lock-lower part	999	Next
1	5N0823509B	Bonnet lock-lower part	999	Next
1	5N0953236	Contact switch	999	Next
1	N 90807301	Hexagon socket oval head bolt, self-locking M6X25	999	Next
1	WHT000425	Hexagon socket oval head bolt, self-locking M6X62	999	Next
1	N 90917701	Hexagon socket oval head bolt, self-locking M6X62	999	Next
1	5N0823531A	Lid lock cable	999	Next
1	5N0823411A	Holder for bowden cable	999	Next
1	6R0823347	Cover	999	Next
1	1J1823533C	Grip for lid lock cable	999	Next
1	1J1823533C 9B9	Grip for lid lock cable satin black	999	Next
1	1J1823533C	Grip for lid lock cable	999	Next
1	1J1823533C 82V	Grip for lid lock cable titan black	999	Next
1	5N0823535	Lid lock cable	999	Next
1	5M0823544	Grommet	999	Next
1	1K0823591B	Grommet	999	Next
1	1K1823633B	Bracket	999	Next
1	N 90974701	Hexagon socket head panel bolt 5X16	999	Next
1	N 90833801	Expanding nut 4,8	999	Next
1	1T0823567	Clip	999	Next
1	5N0823723B	Seal for water box	999	Next
1	5N0823729A	Filler piece	999	Next

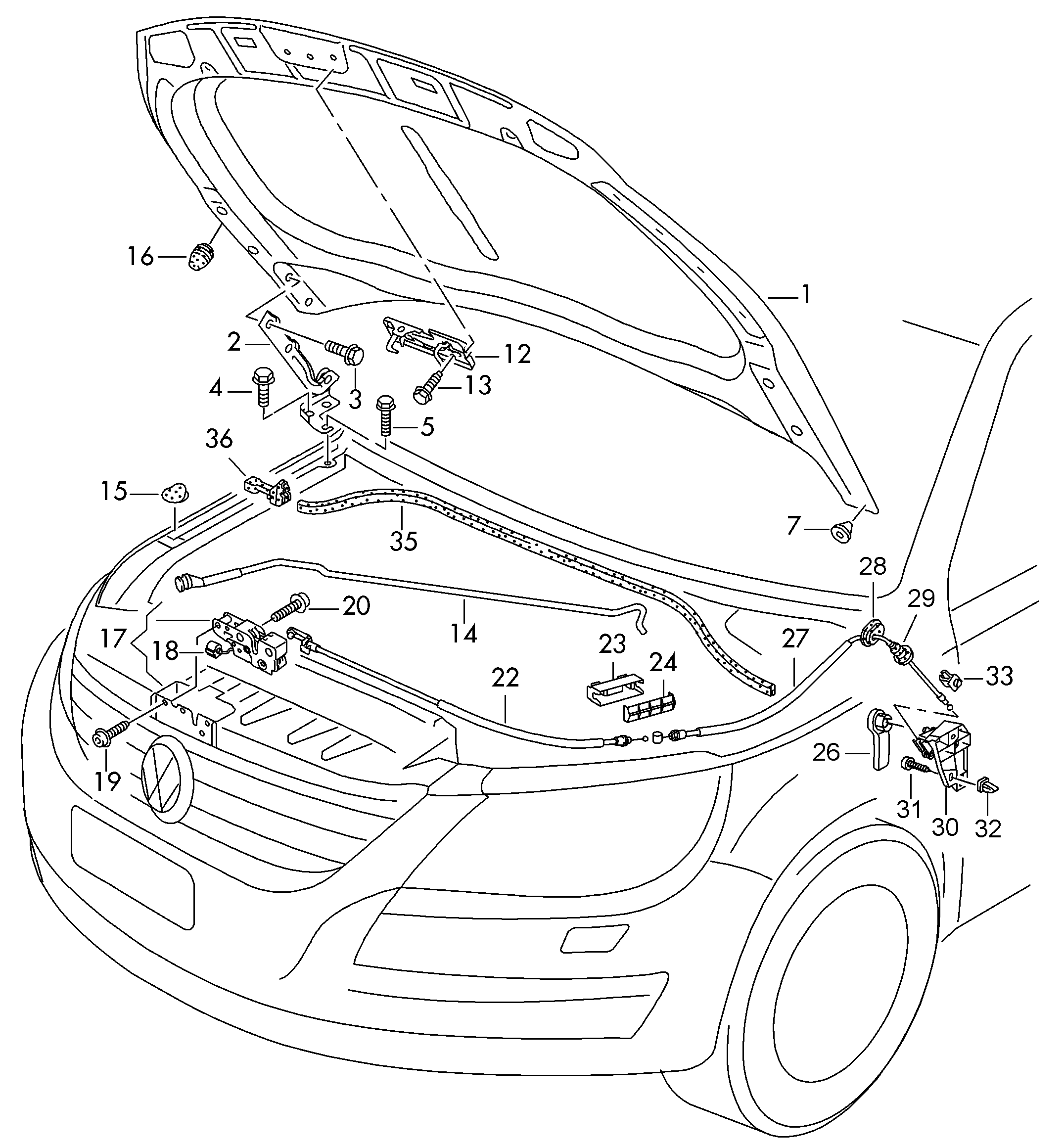

Scheme Bonnet front Volkswagen Tiguan 2010-2017 EUR
