Bonnet front Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5M0823031F	Bonnet	999	Next
1A	1K0898615	1 set attachment parts bonnet	999	Next
2	5M0823301	Lid hinge	999	Next
2	5M0823302	Lid hinge	999	Next
4	N90930503	Multi-point socket head bolt with collar M8X24	999	Next
5	N90798805	Hexagon collar nut M8	999	Next
6	5M0823601C	Connecting plate for lid hinge	999	Next
6	5M0823602B	Connecting plate for lid hinge	999	Next
7	N01508210	Hexagon collar nut M6	999	Next
7	N01508213	Hexagon collar nut M6	999	Next
8	N90650001	Cover cap 13X9,5	999	Next
9	N10338903	Hex collared bolt M6X16	999	Next
11	3B0823499B	Stop buffer	999	Next
12	1T0823480B	Catch hook	999	Next
12	1T0823480A	Catch hook	999	Next
13	N90820401	Bolt, hex. hd. (combi.) self-locking M6X16	999	Next
16	867827500A	Stop buffer 30X22/12	999	Next
17	5M1823509	Bonnet lock-lower part	999	Next
18	6R0953236	Contact switch	999	Next
20	WHT000425	Hexagon socket oval head bolt, self-locking M6X62	999	Next
20	N90917701	Hexagon socket oval head bolt, self-locking M6X62	999	Next
22	5M1823531A	Lid lock cable	999	Next
22	5M2823531A	Lid lock cable	999	Next
24	1T0823567	Clip	999	Next
26	1J1823533C	Grip for lid lock cable	999	Next
26	1J1823533C9B9	Grip for lid lock cable satin black	999	Next
26	1J1823533C	Grip for lid lock cable	999	Next
26	1J1823533C82V	Grip for lid lock cable titan black	999	Next
26	1J2823533C	Grip for lid lock cable	999	Next
26	1J2823533C9B9	Grip for lid lock cable satin black	999	Next
27	5M0823535	Lid lock cable	999	Next
28	5M0823544	Grommet	999	Next
29	1K0823591B	Grommet 18MM	999	Next
30	1K1823633B	Bracket	999	Next
30	1K2823633A	Bracket	999	Next
31	N90548803	Oval head panel screw 4,8X19	999	Next
32	N90541001	Expanding nut 4,2X7,3	999	Next
35	5M0823723A	Seal for water box	999	Next
36	5M0823729B	Filler piece	999	Next
36	5M0823730A	Filler piece	999	Next
38	5M0823363B	Rod	999	Next
39	5M0823395A	Mounting for bonnet stay	999	Next
40	5M0823397B	Clip	999	Next
	5M0823397B209	Clip hazard orange	999	Next
42	5M0853173B	Trim for cap	999	Next
	5M0853173B5AP	Trim for cap black	999	Next

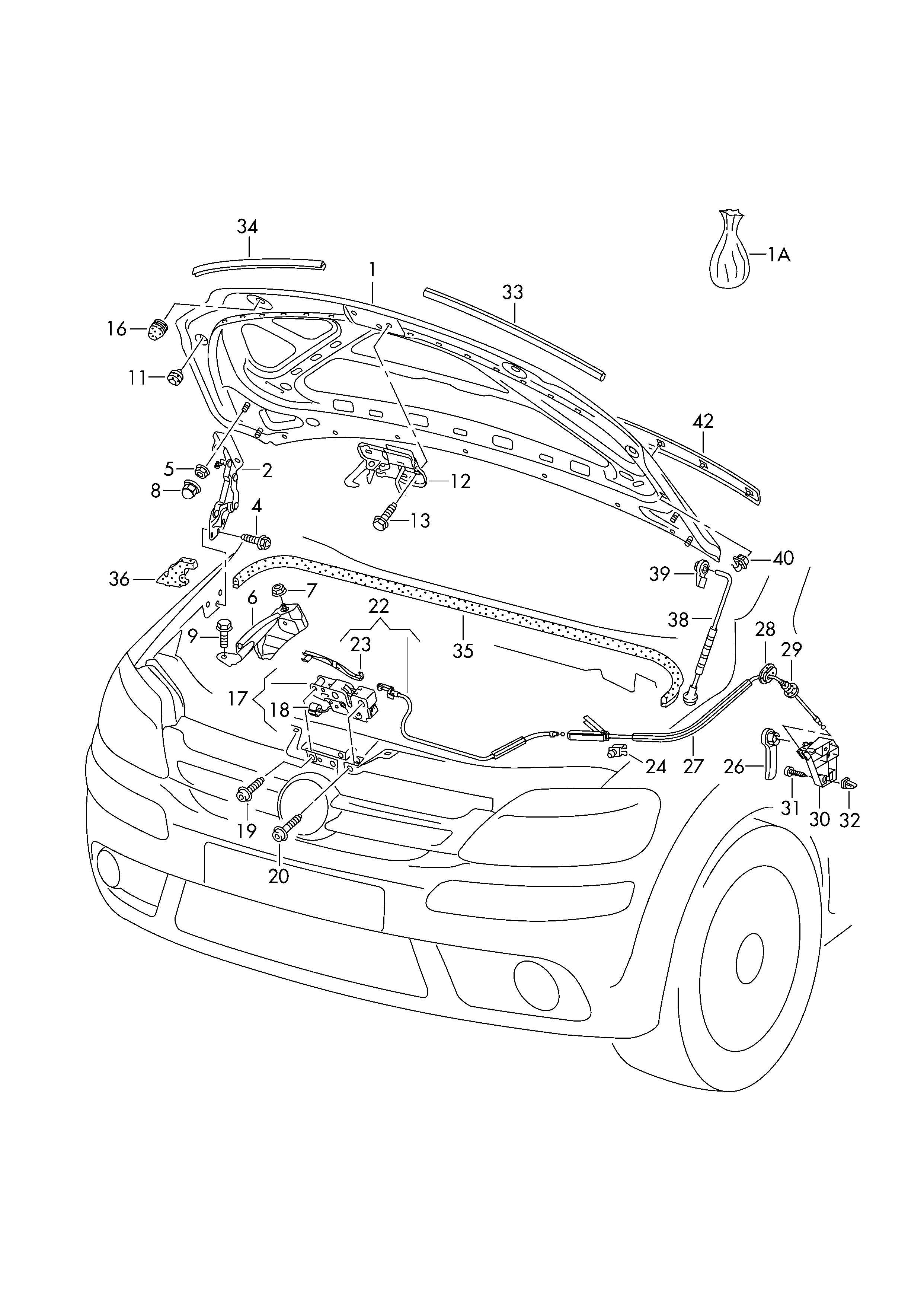

Scheme Bonnet front Volkswagen Golf Plus 2012-2014 EUR
