Battery, battery mounting, battery protection cover for vehicles with start stop operation or recuperation (energy recycling) PR-7L6, 7L7 Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	000915105CC	Battery, filled and charged (ABSORBENT GLASS MAT BATTERY) 68AH/380A (AGM)	999	Next
1	000915105EB	Battery, filled and charged (ENHANCED FLOODED BATTERY) 59AH/320A (EFB)	999	Next
1	000915105EC	Battery, filled and charged (ENHANCED FLOODED BATTERY) 69AH/360A (EFB)	999	Next
1	915506	Bungs	999	Next
1		Cover cap not for this model	999	Next
1	7N0915429A	Cover cap	999	Next
1	1K0915333H	Battery console	999	Next
1	1K0915325A	Heat insulation	999	Next
1	1K0915325B	Heat insulation	999	Next
1	N 90577001	Clamping washer 12X25,5	999	Next
1	N 10482701	Hex collared bolt M6X35	999	Next
1	N 10109210	Hex collared bolt M8X30	999	Next
1	6X0959502A	Clamping strip for battery	999	Next
1	1J0803219	Clamping strip for battery	999	Next
1		No replacement part	999	Next
1	3C0915335	Trim for battery	999	Next
1	3C0915336A	Trim for battery	999	Next
1	3C0915443A	Cover for battery	999	Next
1	1K0915411B	Protective battery casing with cover	999	Next
1	1K0915411C	Protective battery casing with cover	999	Next
1	1K0915411C	Protective battery casing with cover	999	Next
1	1K0915411C	Protective battery casing with cover	999	Next
1	1K0915411D	Protective battery casing with cover	999	Next
1	5N0915411D	Protective battery casing with cover	999	Next
1	1K0915418G	Battery protection cover	999	Next
1	1K0915418G	Battery protection cover	999	Next
1	1K0971813F	Cover cap	999	Next
1	1K0971813F 9B9	Cover cap satin black	999	Next

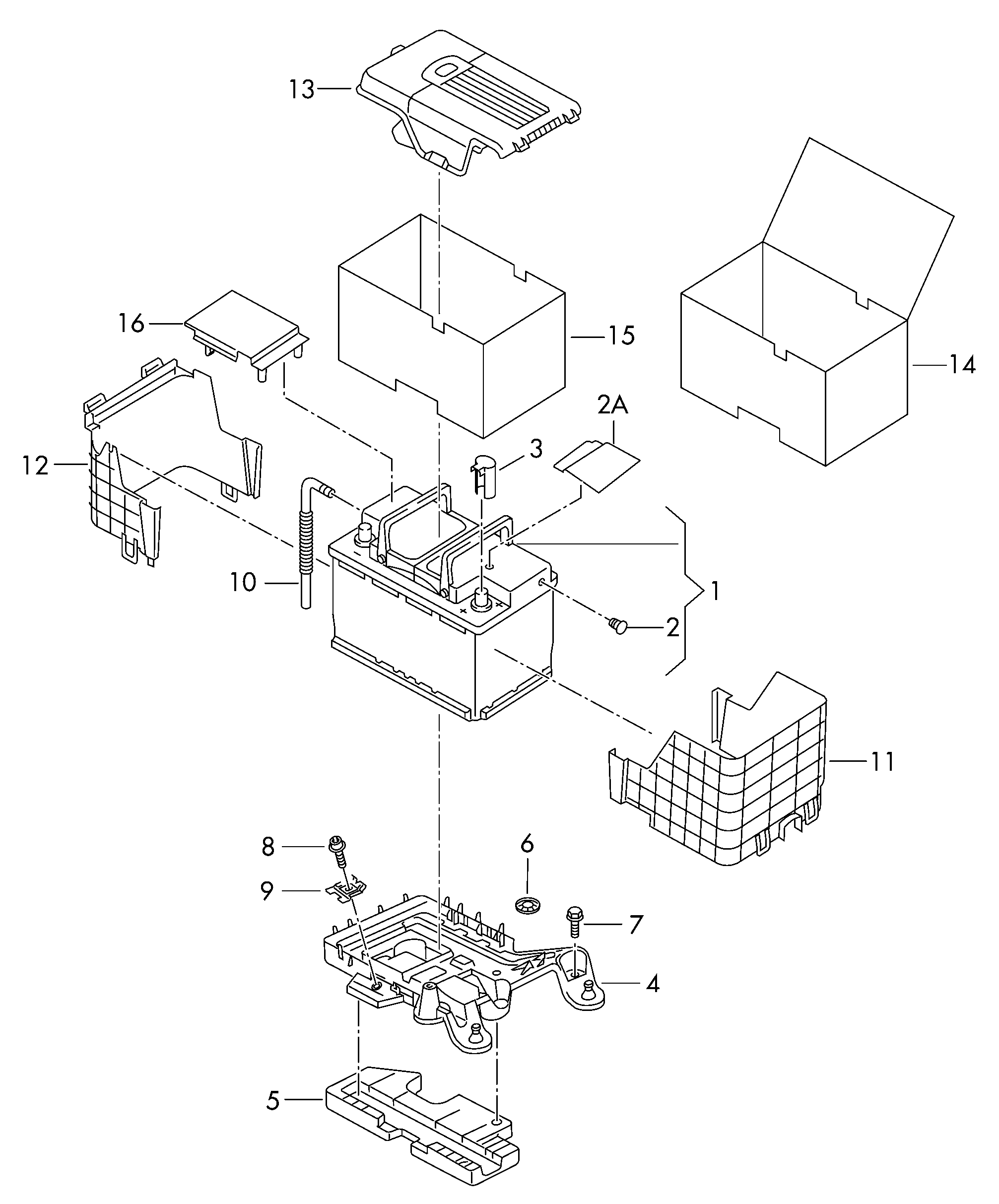

Scheme Battery, battery mounting, battery protection cover for vehicles with start stop operation or recuperation (energy recycling) PR-7L6, 7L7 Volkswagen Tiguan 2010-2017 EUR
