Air-conditioning system with, electronic regulation rhd PR-9AK Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K2820015H	Fan	999	Next
2	3C0907521F	Fan control J 126	999	Next
3	1K0907511	Central flap positioning motor V 425	999	Next
4	1K0907511B	Control motor for temperature regulating flap V 159	999	Next
5	1K2907511C	Control motor for temperature regulating flap V 158	999	Next
6	1K2907511E	Servomotor for defroster flap V 107	999	Next
7	1K0907511	Central flap positioning motor V 426	999	Next
8	1K2820353A	Air distribution housing	999	Next
9	1K2820007C	Housing	999	Next
10	1K2819653B	Filter insert with odour and harmful substance filtering	999	Next
10	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
10	1K0819644B	Dust and pollen filter insert	999	Next
11	1K0820679	Expansion valve R134A	999	Next
12	1K2820304B	Intake duct	999	Next
13	N10476301	Socket head bolt M5X40X16	999	Next
14	1K0820080	Seal	999	Next
15	1K2820103E	Evaporator with expansion valve	999	Next
16	1K0819031E	Heat exchanger	999	Next
17	1K0963235G	Heater element for electr. auxiliary air heater Z 35	999	Next
18	1T2819593A	Cover	999	Next
19	WHT000155	Wing screw 4,8	999	Next
20	8E0898380	Gasket set	999	Next
21	1K2819857C	Coolant pipe also use: 8E0 898 380	999	Next
27	3D0907543A	Temperature sensor G 261 G 262	999	Next
29	1K0907543G	Temperature sensor evaporator G 263	999	Next
30	1K2260113D	Water drain pipe	999	Next
31	1K2898001	1 set: levers for air distribution housing	999	Next
31	1K0898002	1 set of levers air distribution housing	999	Next
31	1K0898002A	1 set of levers air distribution housing	999	Next
32	N10424102	Hexagon head panel screw 4X16-H	999	Next
33	1K0820139	Seal expansion valve	999	Next
37	1K0820751C	Grommet	999	Next
38	1K0820061	Seal expansion valve	999	Next
35	8E0260749D	O-ring 14X1,8	999	Next
36	8E0260749	O-ring 10,8X1,82	999	Next
43	1K0819422B	Cover dust and pollen filter	999	Next
44	1K2819349F	Cover	999	Next
44	1K2819349G	Cover	999	Next
47	1K2819473C	Bracket heater unit	999	Next
48	N90532901	Hexagon head bolt (combi) M6X16	999	Next

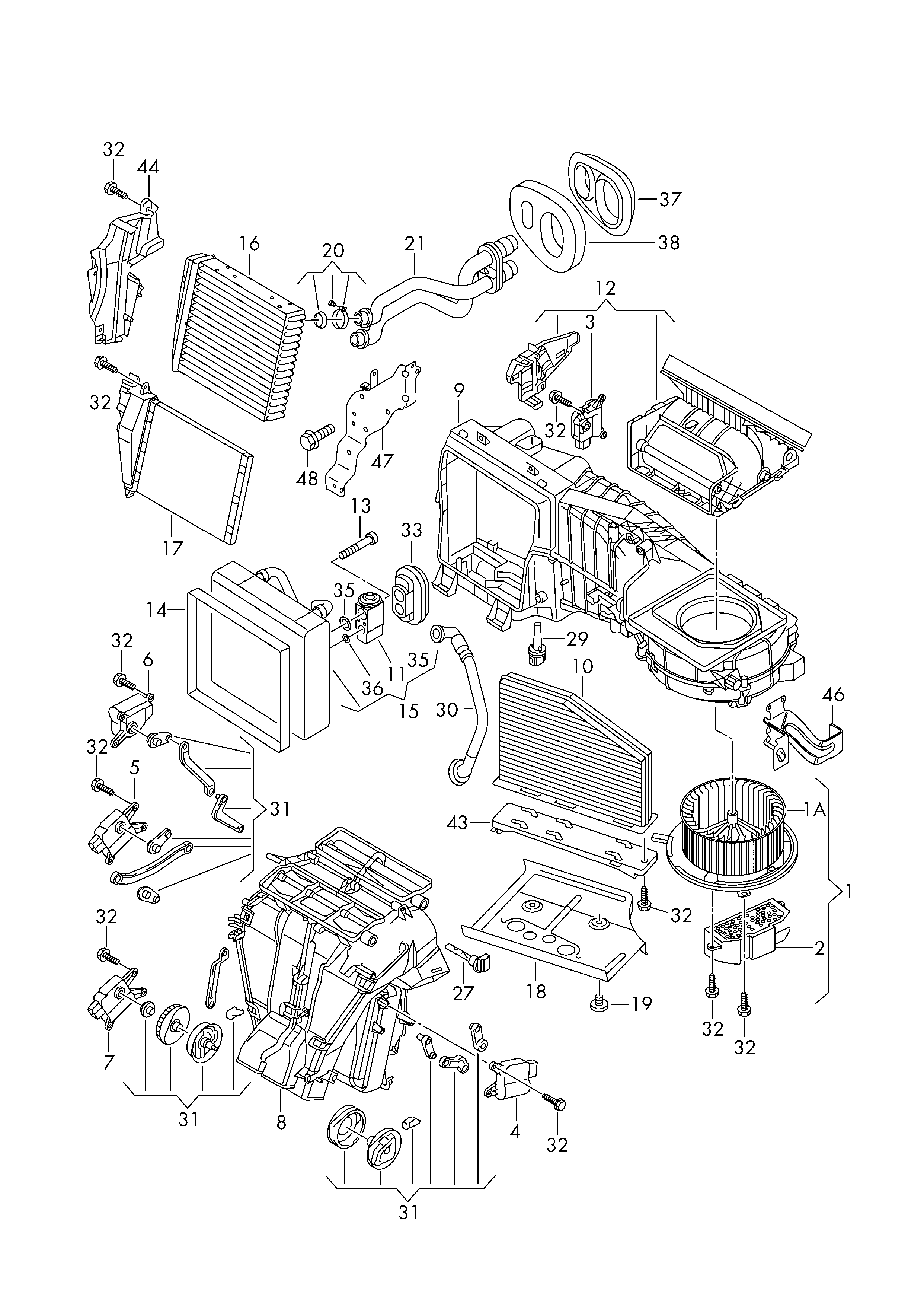

Scheme Air-conditioning system with, electronic regulation rhd PR-9AK Volkswagen Golf Plus 2012-2014 EUR
