Air-conditioning system with, electronic regulation lhd Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1A	3C1820015R	Fan	999	Next
1	3C1820015P	Fan	999	Next
1	3C1820015M	Fan	999	Next
2	3C0907521F	Fan control	999	Next
3	3C0907511A	Central flap positioning motor V425	999	Next
3	3C0907511Q	Central flap positioning motor V425	999	Next
4	3C0907511R	Control motor for temperature regulating flap V159	999	Next
5	3C1907511F	Control motor for temperature regulating flap V158	999	Next
6	3C1907511A	Servomotor for defroster flap V107	999	Next
6	3C1907511G	Servomotor for defroster flap V107	999	Next
7	3C0907511A	Central flap positioning motor V426	999	Next
7	3C0907511Q	Central flap positioning motor V426	999	Next
8	3C1898353B	Connection box for models without auxiliary heater	999	Next
8	3C1898353C	Connection box for models with supplementary heater	999	Next
9	3C1898063A	Housing	999	Next
10	1K1819653B	Filter insert with odour and harmful substance filtering	999	Next
10	JZW819653B	Filter insert with odour and harmful substance filter eco economy	999	Next
11	1K0820679	Expansion valve	999	Next
12	3C0898304D	Intake duct	999	Next
13	N10476301	Socket head bolt M5X40X16	999	Next
14	1K0820080	Seal	999	Next
15	3C1820103B	Evaporator with expansion valve	999	Next
16	3C0819031	Heat exchanger	999	Next
17	1K0963235F	Heater element for electr. auxiliary air heater, before 29.05.2011 Z35	999	Next
17	1K0963235G	Heater element for electr. auxiliary air heater Z35, D 30.05.2011 and after	999	Next
18	1K1819593B	Cover	999	Next
19	WHT000155	Wing screw 4,8	999	Next
20	3C0898380	Gasket set	999	Next
21	3C1819857	Coolant pipe additionally to be used items: 20	999	Next
27	3D0907543A	Temperature sensor for vehicles with electronically regulated air condit. G261 G262	999	Next
29	1K0907543F	Temperature sensor evaporator G263	999	Next
30	1K1260113D	Water drain pipe	999	Next
31	3C1898001A	1 set: levers for air distribution housing	999	Next
32	N10424102	Hexagon head panel screw 4X16-H	999	Next
-	1K0820080	Seal	999	Next
34	1K0820139	Seal for air conditioner	999	Next
-	1K0820061	Seal	999	Next
-	1K0820751C	Grommet	999	Next
35	8E0260749D	O-ring 14X1,8	999	Next
36	8E0260749	O-ring 10,8X1,82	999	Next
43	3C0819422	Cover for dust-pollen filter	999	Next
44	3C1819349B	Cover	999	Next
44	3C1819349C	Cover	999	Next
-	1K1819473H	Bracket heater unit	999	Next
-	3C1820215	Adapter	999	Next
-	N90532901	Hexagon head bolt (combi) M6X16	999	Next
-	3C0820751	Grommet	999	Next
-	3C1820061	Seal expansion valve	999	Next
-	3C1819165	Seal	999	Next
-	3C1819593C	Cover	999	Next

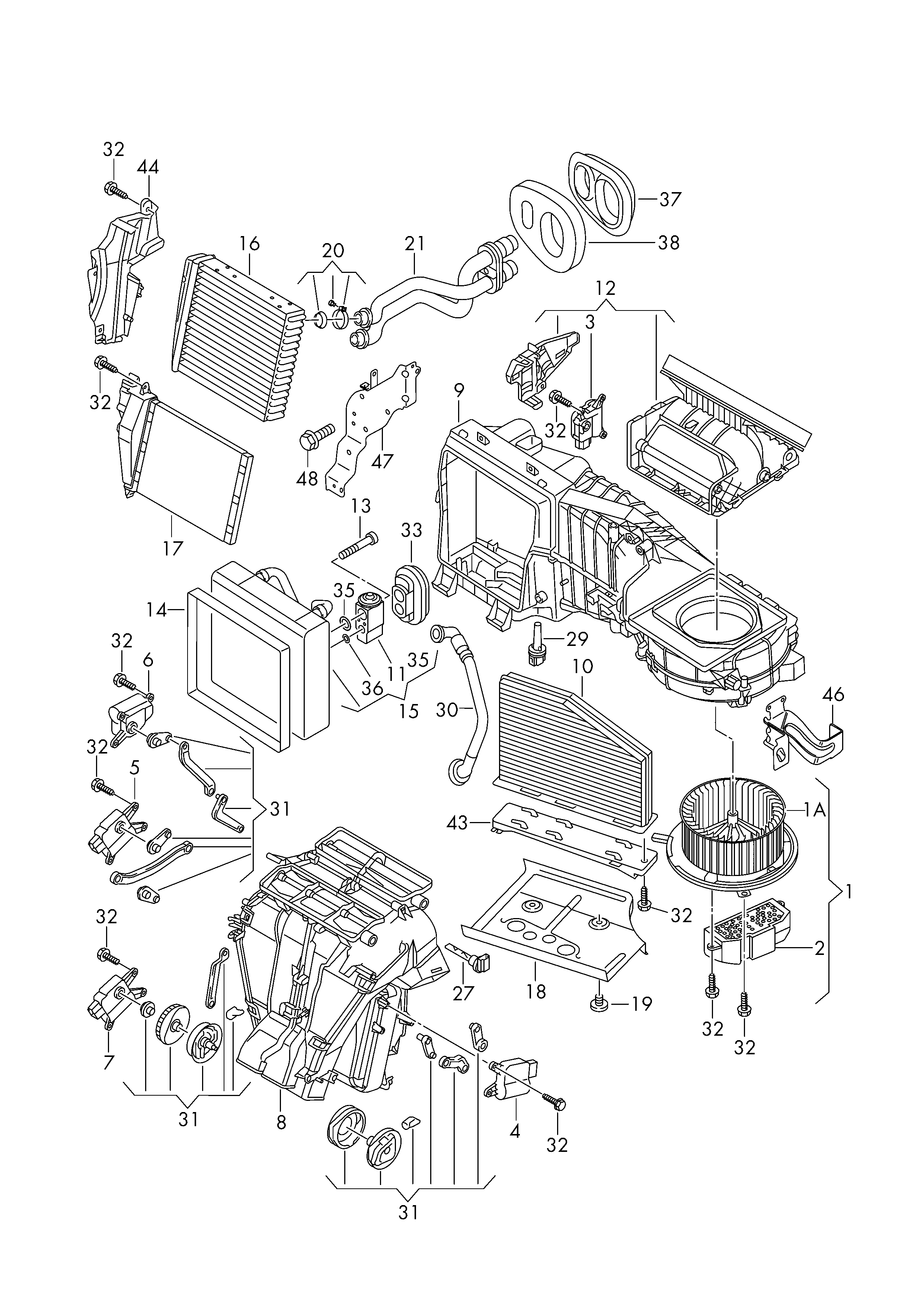

Scheme Air-conditioning system with, electronic regulation lhd Volkswagen Passat CC Coupe 2009-2012 EUR
