Air-conditioning system with, electronic regulation lhd PR-9AK Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1820015P	Fan	999	Next
1A	3C1820015R	Fan	999	Next
1A	3C1820015AA	Fan	999	Next
2	3C0907521F	Fan control	999	Next
3	3C0907511A	Central flap positioning motor V 425	999	Next
3	3C0907511Q	Central flap positioning motor V 425	999	Next
4	3C0907511R	Control motor for temperature regulating flap V 159	999	Next
5	3C1907511F	Control motor for temperature regulating flap V 158	999	Next
6	3C1907511A	Servomotor for defroster flap V 107	999	Next
6	3C1907511G	Servomotor for defroster flap V 107	999	Next
7	3C0907511A	Central flap positioning motor V 426	999	Next
7	3C0907511Q	Central flap positioning motor V 426	999	Next
8	3C1898353B	Connection box for models without auxiliary heater	999	Next
8	3C1898353C	Connection box for models with supplementary heater	999	Next
9	3C1898063A	Housing	999	Next
10	1K1819653B	Filter insert with odour and harmful substance filtering	999	Next
10	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
10	1K0819644B	Dust and pollen filter insert	999	Next
11	1K0820679	Expansion valve	999	Next
12	3C0898304D	Intake duct	999	Next
13	N10476301	Socket head bolt M5X40X16	999	Next
15	3C1820103B	Evaporator with expansion valve	999	Next
15	3C1820103C	Evaporator with expansion valve	999	Next
15	3C1820103D	Evaporator with expansion valve	999	Next
16	3C0819031	Heat exchanger	999	Next
16	3C0819031A	Heat exchanger	999	Next
17	1K0963235G	Heater element for electr. auxiliary air heater	999	Next
18	5M1819593B	Cover	999	Next
19	WHT000155	Wing screw 4,8	999	Next
20	3C0898380	Gasket set	999	Next
21	3C1819857	Coolant pipe	999	Next
25	1K0907543F	Temperature sensor	999	Next
26	N90532901	Hexagon head bolt (combi) M6X16	999	Next
27	4B0820539	Temperature sensor for vehicles with electronically regulated air condit.	999	Next
29	1K0907543F	Temperature sensor evaporator	999	Next
30	1K1260113D	Water drain pipe	999	Next
31	3C1898001A	1 set: levers for air distribution housing	999	Next
32	N10424102	Hexagon head panel screw 4X16-H	999	Next
33	1K0820139	Seal	999	Next
35	8E0260749D	O-ring 14X1,8	999	Next
36	8E0260749	O-ring 10,8X1,82	999	Next
37	3C0820751	Grommet	999	Next
38	1K0820061	Seal expansion valve	999	Next
42	3C1820215	Adapter	999	Next
43	3C0819422	Cover for dust-pollen filter	999	Next
44	3C1819349B	Cover	999	Next
44	3C1819349C	Cover	999	Next
47	1K1819473H	Bracket heater unit	999	Next

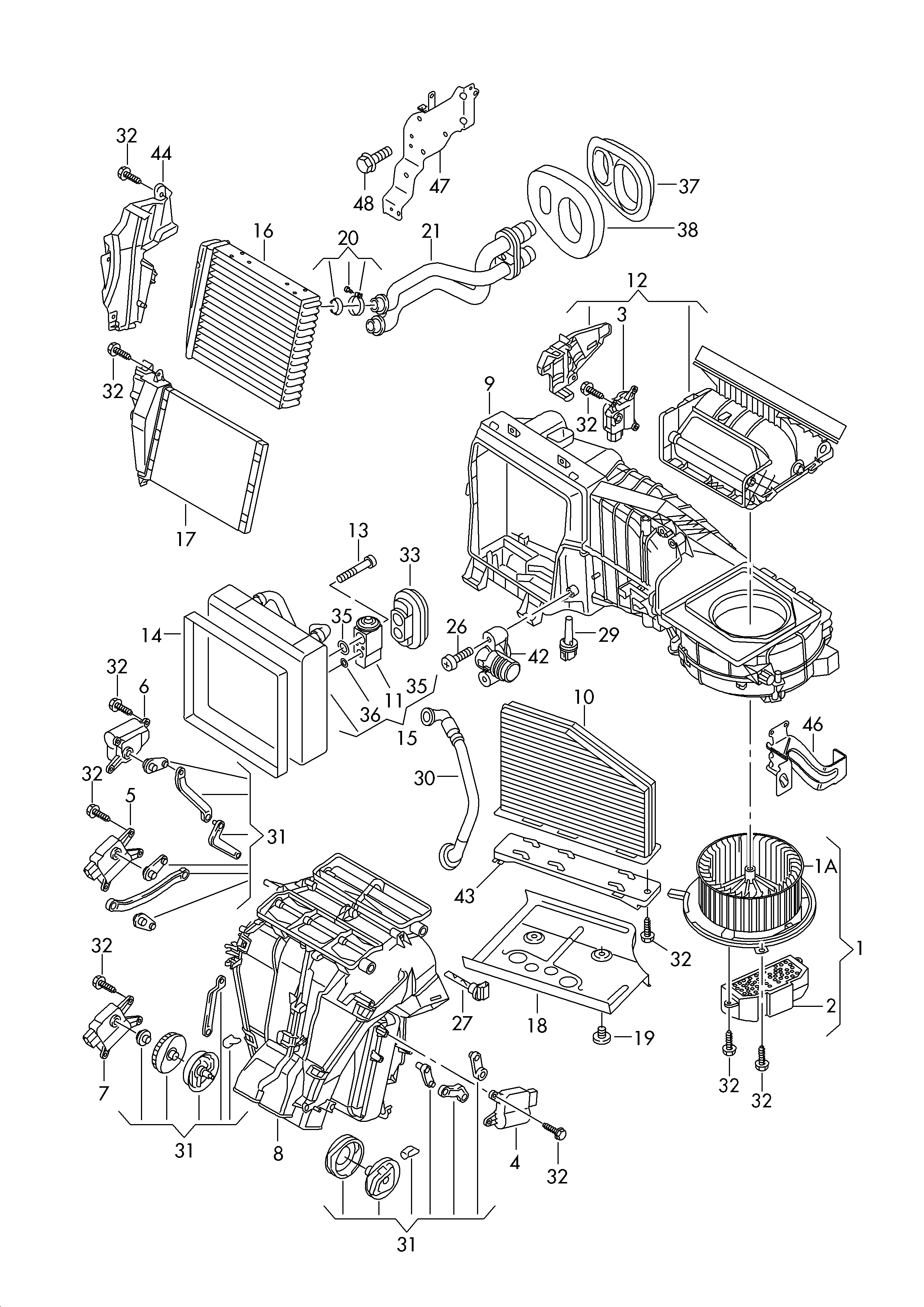

Scheme Air-conditioning system with, electronic regulation lhd PR-9AK Volkswagen Golf Plus 2012-2014 EUR
