Air filter with connecting, parts 1.6 ltr. petrol eng.+, BSE, BSF, CMXA, CHGA Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0129607AQ	Air filter	999	Next
2	1F0129620	Air filter element	999	Next
4	N90288606	Fillister hd. bolt 5X17	999	Next
5	1K0129610B	Elbow	999	Next
5	1K0129610B	Elbow also use: 1J0 131 510	999	Next
5A	1J0131510	Cap closure	999	Next
6	1K0129684AE	Intake manifold use if required: 06C 145 291	999	Next
6	1K0129684AF	Intake manifold for vehicle use in cold climates use if required: 06C 145 291	999	Next
7	1K0103493	Vent hose	999	Next
8	06C145291	Cap closure 5,2X2X16,6MM	999	Next
9		Vacuum hose	999	Next
10	1K0129618AJ	Air guide	999	Next
11	N10469702	Speed nut ST5,5X16,5X15	999	Next
12	N10354602	Hexagon socket head panel bolt 5X16	999	Next
13	N10296001	Clamp 75X12	999	Next
14	1K0129622D	Intake air duct	999	Next
15	N10609203	Hexagon collar nut M8	999	Next
18	N90926501	Spring band clamp 47X12	999	Next
20	N10609203	Hexagon collar nut M8	999	Next
21	N90656101	Spring band clamp 65X12	999	Next
22	4A0820199	Double cable tie 7X213/140MM	999	Next
23	N90656201	Spring band clamp 70X12	999	Next
24	N90817003	Hexagon socket head panel bolt 6X17	999	Next
25	1K0129648A	Bracket	999	Next

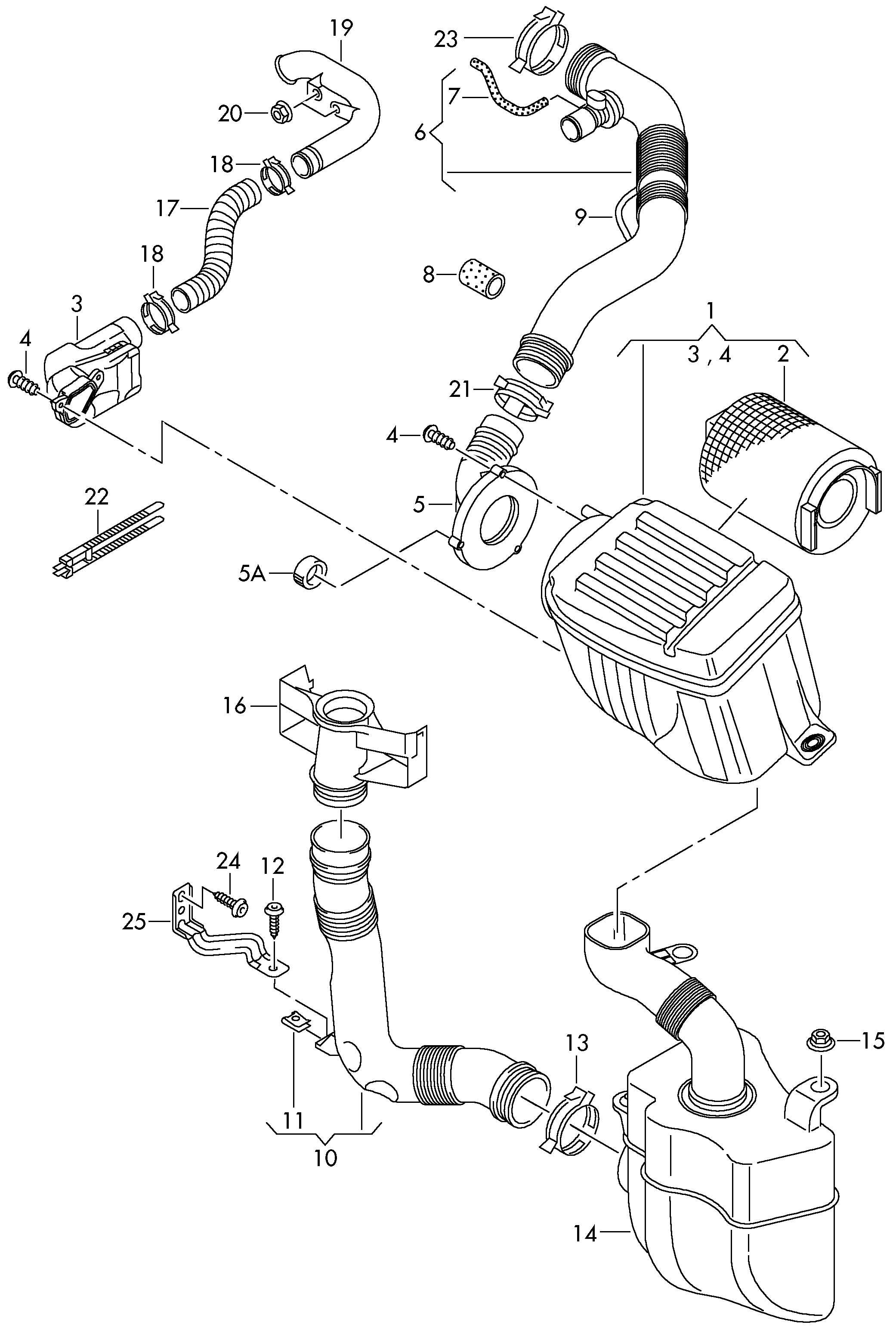

Scheme Air filter with connecting, parts 1.6 ltr. petrol eng.+, BSE, BSF, CMXA, CHGA Volkswagen Golf Plus 2012-2014 EUR
