Air conditioning rhd Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K2819015C	Fan	999	Next
1	1K2819015	Fan	999	Next
2	1K0907511C	Positioning motor for recirculated air operation V 113	999	Next
3	1K2907511C	Control motor for temperature regulating flap V 68	999	Next
8	1K2820353	Connection box	999	Next
9	1K2820007A	Housing	999	Next
10	1K2819304	Intake duct	999	Next
11	1K0959263A	Series resistor	999	Next
12	1K2819653B	Filter insert with odour and harmful substance filtering	999	Next
12	JZW819653B	Filter insert with odour and harmful substance filter eco economy	999	Next
12	1K0819644B	Dust and pollen filter insert	999	Next
14	1K0820679	Expansion valve R134A	999	Next
15	1K2820103B	Evaporator with expansion valve	999	Next
16	1K0819031D	Heat exchanger	999	Next
16	1K0819031B	Heat exchanger	999	Next
17	1K0963235F	Heater element for electr. auxiliary air heater, before 29.05.2011	999	Next
17	1K0963235G	Heater element for electr. auxiliary air heater, D 30.05.2011 and after	999	Next
18	1K0820080	Seal	999	Next
19	3C2819593	Cover	999	Next
20	8E0898380	Gasket set	999	Next
21	1K2819857C	Coolant pipe additionally to be used items: 20	999	Next
22	WHT000155	Wing screw 4,8	999	Next
26	N10424102	Hexagon head panel screw 4X16-H	999	Next
27	3D0907543A	Temperature sensor for vehicles with electronically regulated air condit.	999	Next
28	1K0907543G	Temperature sensor evaporator	999	Next
28	1K0907543A	Temperature sensor evaporator	999	Next
30	1K2260113D	Water drain pipe	999	Next
31	1K0820061	Seal expansion valve	999	Next
31	1K0820751C	Grommet	999	Next
33	1K0820139	Seal expansion valve	999	Next
34		Discont. / replace: 1K0 820 139, 1K0 820 061, 1K0 820 751 C	999	Next
35	8E0260749D	O-ring 14X1,8	999	Next
36	8E0260749	O-ring 10,8X1,82	999	Next
43	1K0819422B	Cover dust and pollen filter	999	Next
44	1K2819349G	Cover	999	Next
44	1K2819349F	Cover	999	Next
-	1K2819473C	Bracket heater unit	999	Next
-	N90532901	Hexagon head bolt (combi) M6X16	999	Next
-	3C0819939	Retaining plate	999	Next
45	1K2898001	1 set: levers for air distribution housing	999	Next
45	1K0898002	1 set of levers air distribution housing	999	Next

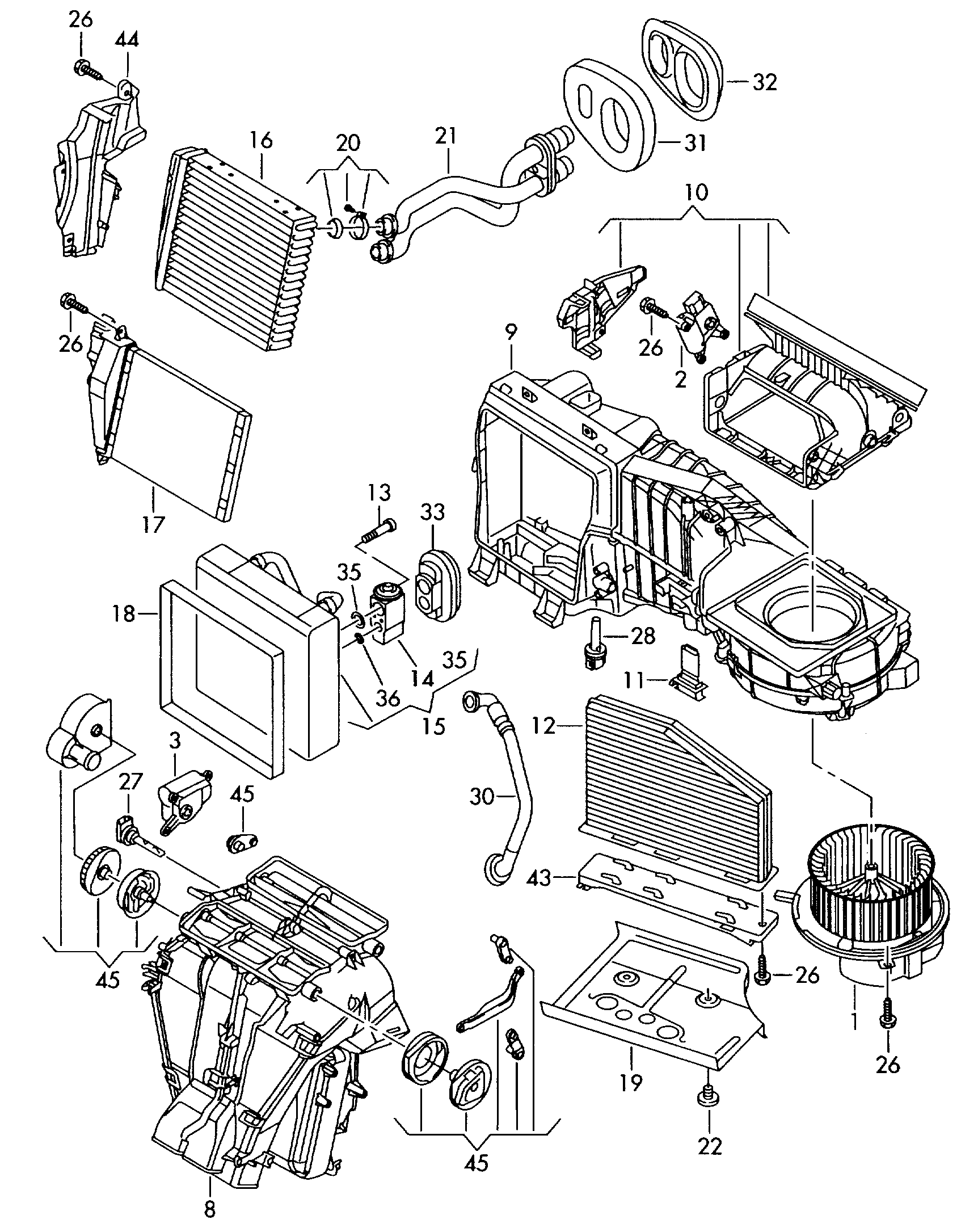

Scheme Air conditioning rhd Volkswagen Passat CC Coupe 2009-2012 EUR
