Air conditioning PR-9AB Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6R2820007A	Housing	999	Next
2	6R2819015	Fan	999	Next
3	N90732102	Hexagon socket flat head bolt 4X16	999	Next
4	6Q0959263A	Series resistor	999	Next
5	6R0820367	Dust and pollen filter insert	999	Next
6	6R2819422	Cover dust and pollen filter	999	Next
7	6RF820103	Evaporator with expansion valve	999	Next
8	6RF820679	Expansion valve	999	Next
9	8K0820261	Gasket set	999	Next
10	N10476301	Socket head bolt M5X40X16	999	Next
11	6C0820139	Seal expansion valve	999	Next
12	6Q0820061	Seal expansion valve	999	Next
13	6Q0820751A	Grommet	999	Next
14		Temperature sensor evaporator not for this model	999	Next
15	6R0819031	Heat exchanger	999	Next
16		Heater element not for this model	999	Next
17		Retaining bracket not for this model	999	Next
18	6C0819875	Air distribution housing	999	Next
19	6C2898003	Gasket set	999	Next
20	6C2820609	Grommet	999	Next
21	6Q2820120	Water drain valve	999	Next
23	6Q2819303A	Intake duct	999	Next
24	8Z0820133	Actuator	999	Next
25	6R2907511A	Positioning motor for recirculated air operation V71	999	Next
26	6Q0819165A	Seal	999	Next
30	6Q2819351A	Air distribution housing	999	Next
-	000863890A	Insulation (universal application) modify in workshop 600X360X15	999	Next
31	6Q0819134	Throttle control element	999	Next
32	6Q0819493	Intermediate lever foot well flap	999	Next
33	6Q0819841	Lever foot well flap	999	Next
34	6Q0819133	Actuator fresh air flap	999	Next
37	8D1820245	Clip	999	Next
38	N90732102	Hexagon socket flat head bolt 4X16	999	Next
39	N90729002	Fillister head bolt (combi.) M5X16	999	Next
50		Wire set	999	Next

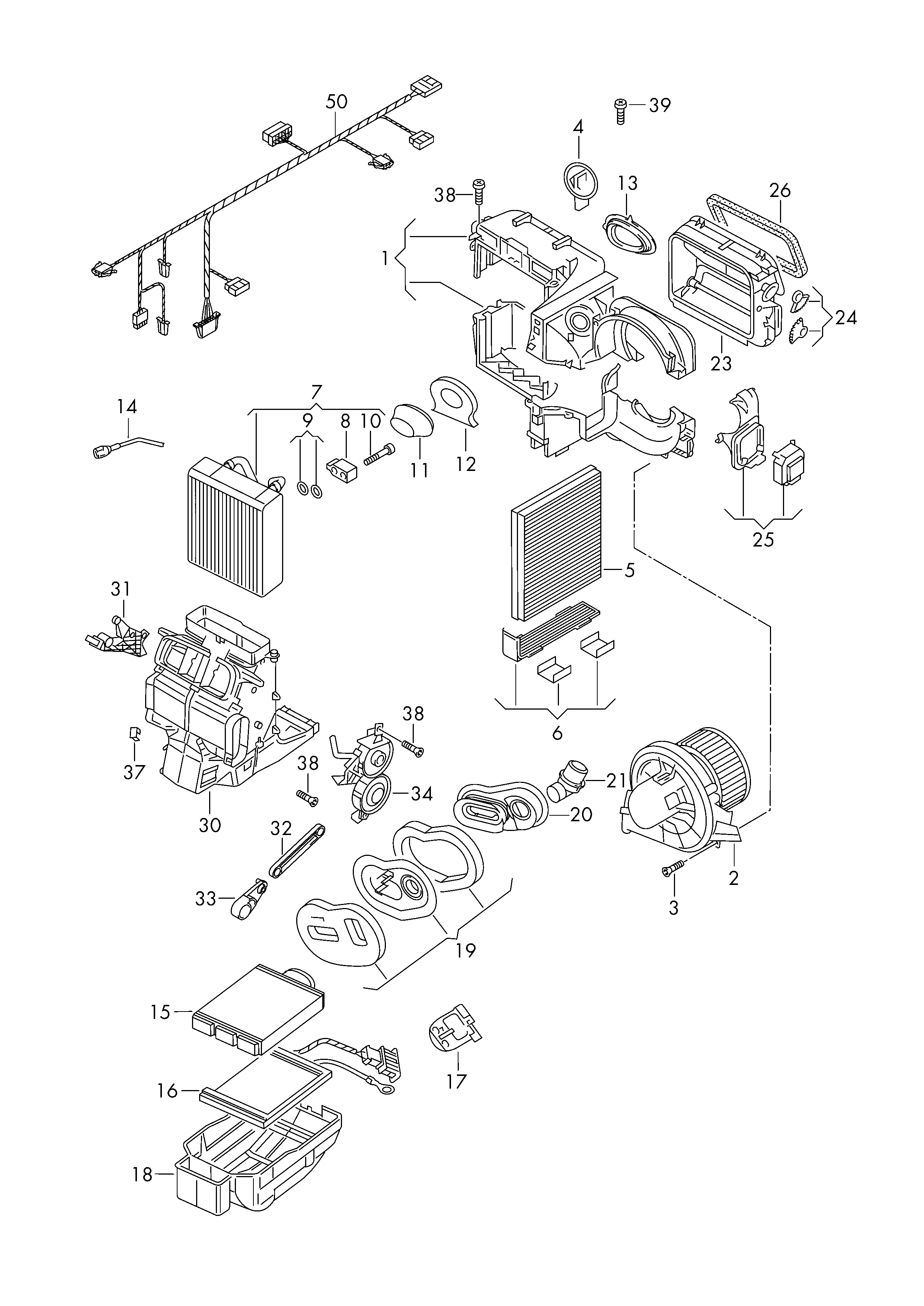

Scheme Air conditioning PR-9AB Volkswagen Polo 2013-2017 EUR
