Air conditioning lhd PR-KH6 Volkswagen Tiguan 2010-2017 EUR

Category content

  1. Spare parts table
  2. An illustrated scheme of this category is below the list of spare parts

№ Part number Part name Наличие Go to the spare parts page
1 1K1820015L Fan 999 Next
1 1K0907511C Positioning motor for recirculated air operation V113 999 Next
1 1K1907511C Control motor for temperature regulating flap V68 999 Next
1 1K0907511J Servomotor for distribution flap V428 999 Next
1 1K1820353C Connection box 999 Next
1 1K1820007A Housing 999 Next
1 1K1819304 Intake duct 999 Next
1 1K0959263A Series resistor N24 999 Next
1 1K1819653B Filter insert with odour and harmful substance filtering 999 Next
1 1K0819644B Dust and pollen filter insert 999 Next
1 N 10476301 Socket head bolt M5X40X16 999 Next
1 1K0820679 Expansion valve R134A 999 Next
1 1K1820103E Evaporator with expansion valve 999 Next
1 1K0819031E Heat exchanger 999 Next
1 1K0963235G Heater element for electr. auxiliary air heater Z35 999 Next
1 1K0820080 Seal 999 Next
1 5N1819593 Cover 999 Next
1 5M1819593B Cover 999 Next
1 8E0898380 Gasket set 999 Next
1 1K1819857C Coolant pipe also use: 8E0 898 380 999 Next
1 WHT000155 Wing screw 4,8 999 Next
1 N 10424102 Hexagon head panel screw 4X16 999 Next
1 3D0907543A Temperature sensor for vehicles with electronically regulated air condit. G192 999 Next
1 1K0907543G Temperature sensor evaporator G308 999 Next
1 1K1260113D Water drain pipe 999 Next
1 1K0820061 Seal expansion valve 999 Next
1 1K0820751C Grommet 999 Next
1 1K0820139 Seal expansion valve 999 Next
1 8E0260749D O-ring 14X1,8 999 Next
1 8E0260749 O-ring 10,8X1,82 999 Next
1 1K0819422B Cover dust and pollen filter 999 Next
1 1K1819349E Cover 999 Next
1 1K1819349F Cover 999 Next
1 1K1898001 1 set: levers for air distribution housing 999 Next
1 1K0898002A 1 set of levers air distribution housing 999 Next
1 1K1819453 Bracket 999 Next
1 1K1819473H Bracket heater unit 999 Next
1 N 90532901 Hexagon head bolt (combi) M6X16 999 Next

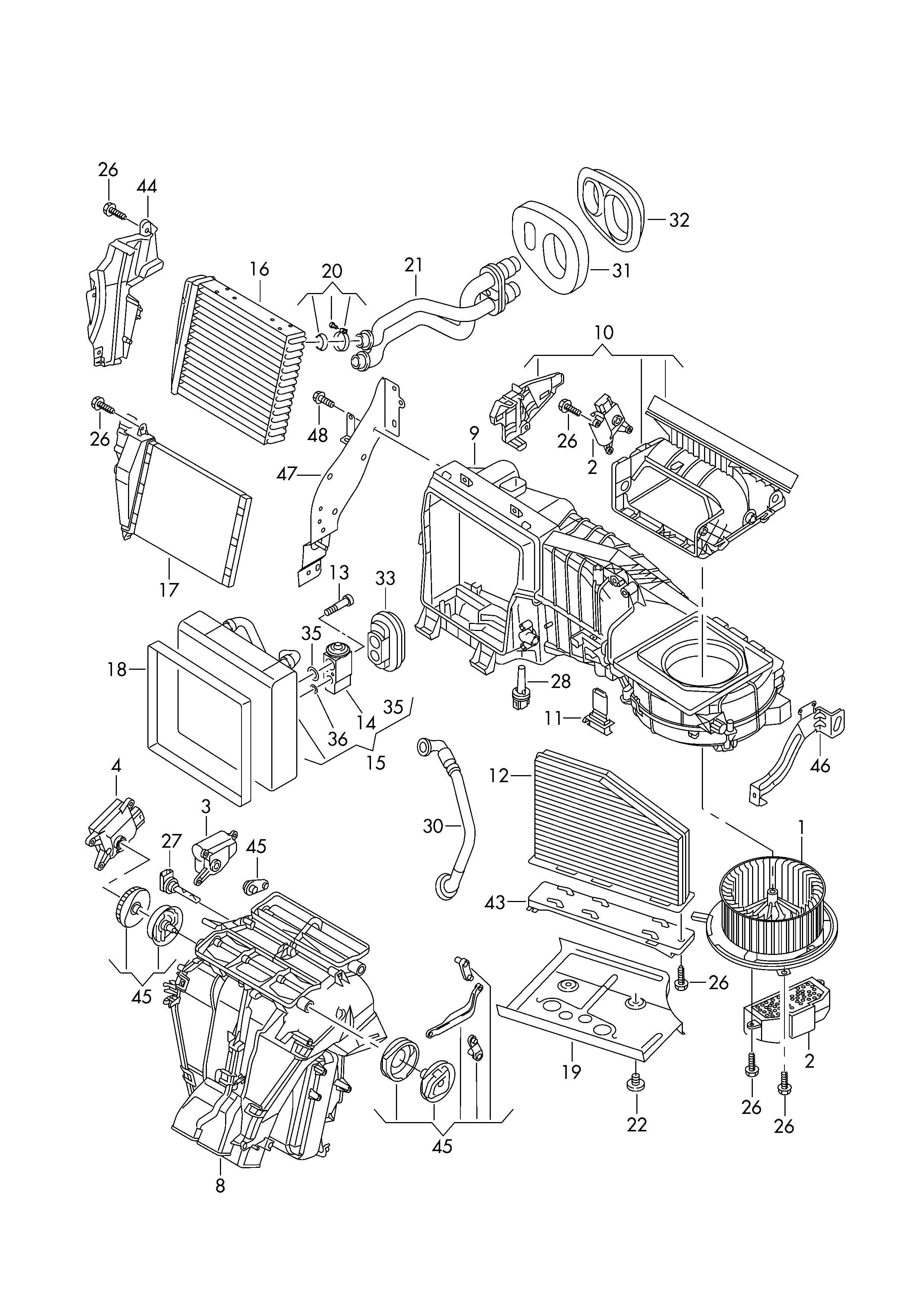

Scheme Air conditioning lhd PR-KH6 Volkswagen Tiguan 2010-2017 EUR


Air conditioning lhd PR-KH6 Volkswagen Tiguan 2010-2017 EUR
