Air conditioning lhd PR-KH6 Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K1819015C	Fan	999	Next
1	1K1819015E	Fan	999	Next
2	3C0907511C	Positioning motor for recirculated air operation V 113	999	Next
2	3C0907511S	Positioning motor for recirculated air operation V 113	999	Next
3	3C1907511F	Control motor for temperature regulating flap V 68	999	Next
4	3C1907511A	Servomotor for defroster flap V 428	999	Next
4	3C1907511G	Servomotor for defroster flap V 428	999	Next
8	3C1898353M	Connection box for models without auxiliary heater	999	Next
-8	3C1898353P	Connection box for models with supplementary heater	999	Next
9	3C1898063	Housing	999	Next
10	3C0898304D	Intake duct	999	Next
11	1K0959263A	Series resistor	999	Next
12	1K1819653B	Filter insert with odour and harmful substance filtering	999	Next
12	JZW819653B	Filter insert with odour and harmful substance filter 'eco' economy	999	Next
12	1K0819644B	Dust and pollen filter insert	999	Next
13	N10476301	Socket head bolt M5X40X16	999	Next
14	1K0820679	Expansion valve	999	Next
15	3C1820103B	Evaporator with expansion valve	999	Next
15	3C1820103C	Evaporator with expansion valve DENSO	999	Next
15	3C1820103D	Evaporator with expansion valve	999	Next
16	3C0819031	Heat exchanger	999	Next
16	3C0819031A	Heat exchanger	999	Next
17	1K0963235G	Heater element for electr. auxiliary air heater	999	Next
19	1K1819593B	Cover	999	Next
20	3C0898380	Gasket set	999	Next
21	3C1819857	Coolant pipe	999	Next
22	WHT000155	Wing screw 4,8	999	Next
26	N10424102	Hexagon head panel screw 4X16-H	999	Next
27		Not for this model	999	Next
28	1K0907543F	Temperature sensor evaporator	999	Next
30	1K1260113D	Water drain pipe	999	Next
31	3C1820061	Seal expansion valve	999	Next
32	3C0820751	Grommet	999	Next
33	1K0820139	Seal expansion valve	999	Next
35	8E0260749D	O-ring 14X1,8	999	Next
36	8E0260749	O-ring 10,8X1,82	999	Next
42	3C1820215	Adapter	999	Next
43	3C0819422	Cover for dust-pollen filter	999	Next
44	3C1819349B	Cover	999	Next
45	3C1898001B	1 set: levers for air distribution housing	999	Next

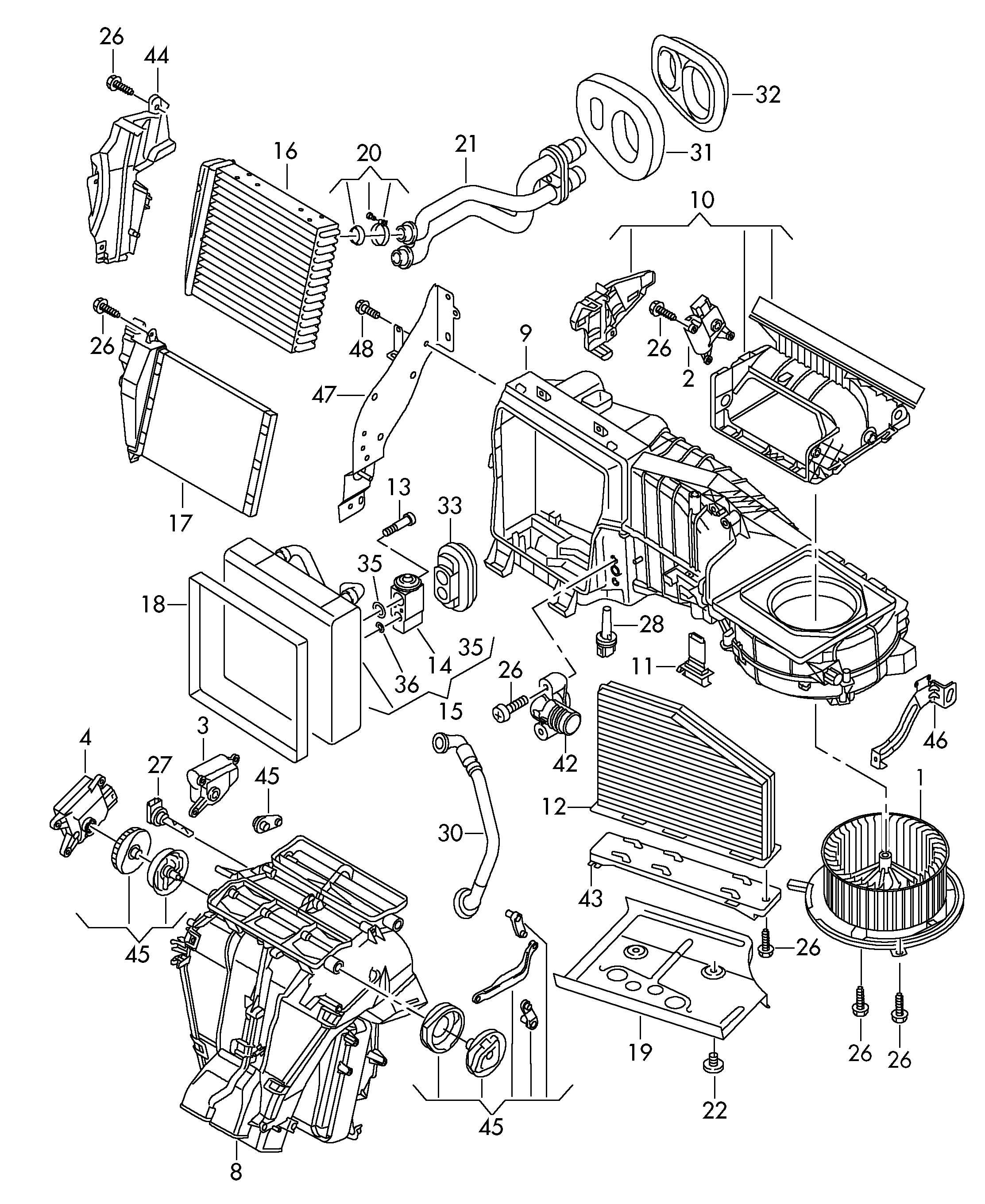

Scheme Air conditioning lhd PR-KH6 Volkswagen Golf Plus 2012-2014 EUR
