Air and footwell heater ducts, air hoses and vents, water deflector, before 07.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	3C1815159C	Cover	999	Next
1	3C2815159D	Cover	999	Next
2	3C1819151	Footwell vent (drivers side)	999	Next
2	3C2819151	Footwell vent (passenger side)	999	Next
3	3C1819152	Footwell vent (passenger side)	999	Next
3	3C2819152	Footwell vent (drivers side)	999	Next
4	3B0819145	Clip	999	Next
5	3C0819801A	Air channel for pass. cabin heater	999	Next
6	3C0819802A	Air channel for pass. cabin heater	999	Next
8	3C8819403	Water deflector	999	Next
8	3C88194039B9	Water deflector satin black	999	Next
8	3C8819403A	Water deflector	999	Next
8	3C8819403A9B9	Water deflector satin black	999	Next
9	3C8819404	Water deflector	999	Next
9	3C88194049B9	Water deflector satin black	999	Next
9	3C8819404A	Water deflector	999	Next
9	3C8819404A9B9	Water deflector satin black	999	Next
11	3C0819655A	Air guide	999	Next
12	1K0815479B	Intake manifold	999	Next
12	1K0941369A	Cover (drivers side)	999	Next
13	3C1819701F	Air vent	999	Next
13	3C1819701F1QB	Air vent black	999	Next
13	3C2819701E	Air vent	999	Next
13	3C2819701E1QB	Air vent black	999	Next
14	3C1819702F	Air vent	999	Next
14	3C1819702F1QB	Air vent black	999	Next
14	3C2819702E	Air vent	999	Next
14	3C2819702E1QB	Air vent black	999	Next
15	3C1819728F	Air vent	999	Next
15	3C1819728F1QB	Air vent black	999	Next
15	3C2819728E	Air vent	999	Next
15	3C2819728E1QB	Air vent black	999	Next
16	3C0819153B	Cover	999	Next
16	3C0819153B1QB	Cover black	999	Next
17	3C1819241E	Intermediate piece	999	Next
17	3C2819241B	Intermediate piece	999	Next
17	3C1819241D	Intermediate piece	999	Next
17	3C2819241F	Intermediate piece	999	Next
18	3C1819063B	Intermediate piece	999	Next
18	3C2819063	Intermediate piece	999	Next
18	3C2819063B	Intermediate piece	999	Next
20	3C0907511	Servomotor V 213	999	Next
22	3C1816311	Air hose for vehicles with air condit.	999	Next
22	3C2816311	Air hose for vehicles with air condit.	999	Next
24	3C0819465	Vent trim	999	Next
28	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
29	N01508210	Hexagon collar nut M6	999	Next
30	3C0819203B	Vent	999	Next
30	3C0819203B1QB	Vent black	999	Next
31	1K0819663	Cap	999	Next
34	1K0820731	Connector union	999	Next
35	3B0816355	Valve	999	Next
35	3B081635501C	Valve satin black	999	Next
38	1T0857489	Bungs	999	Next
39	1K0907543E	Temperature sensor for vehicles with electronically regulated air condit.	999	Next
40	1K0907659	Air quality sensor	999	Next
41	1K0971939C	Bracket for air quality sensor	999	Next

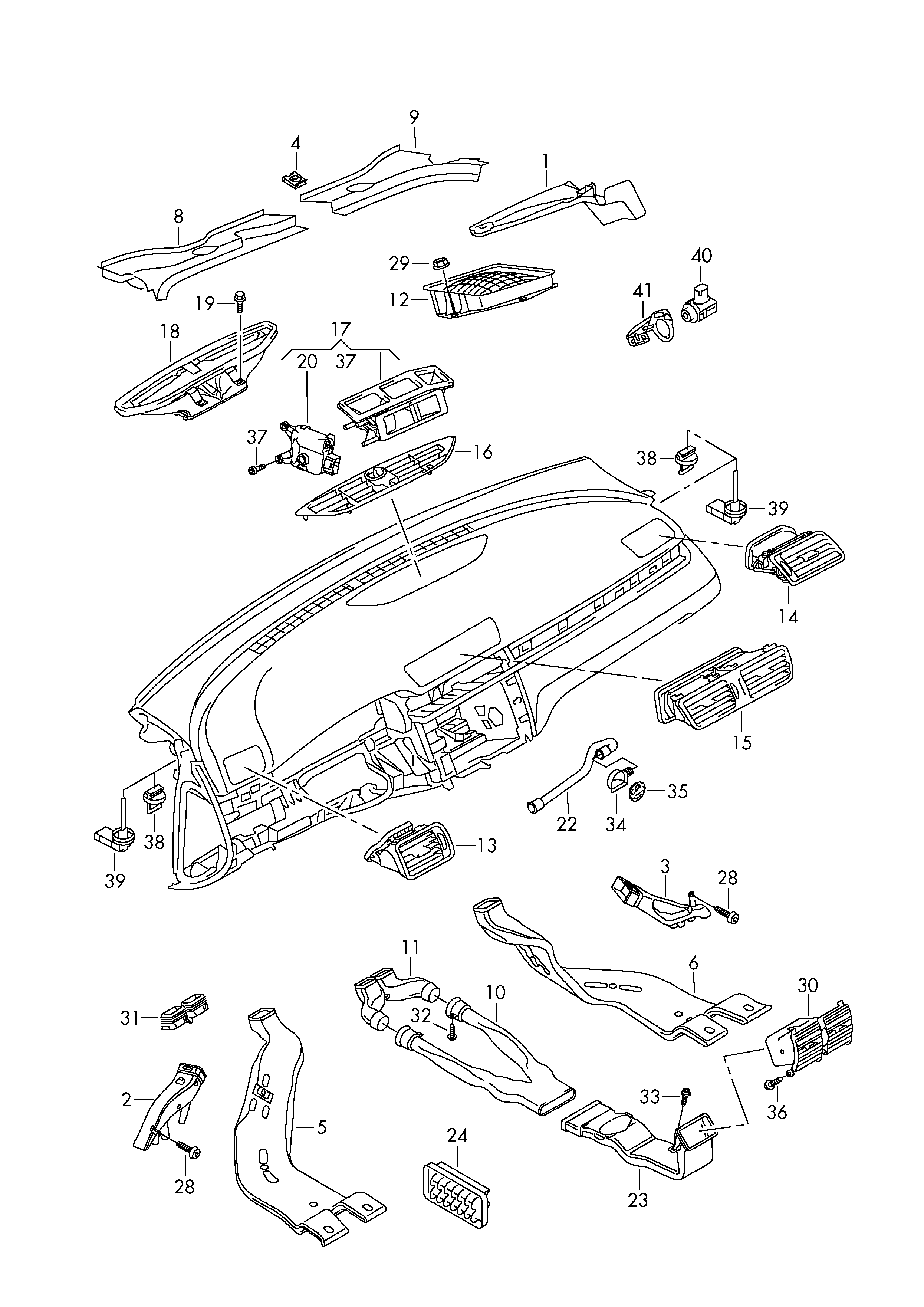

Scheme Air and footwell heater ducts, air hoses and vents, water deflector, before 07.11.2010 Volkswagen Passat CC Coupe 2009-2012 EUR
