Air and footwell heater ducts, air hoses and vents notchback Volkswagen Polo 2013-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	6R2819415C	Water deflector	999	Next
1	6R2819415C9B9	Water deflector satin black	999	Next
2	6R0819447B	Lining for fender	999	Next
2	6R0819447B9B9	Lining for fender satin black	999	Next
2	6C0819447	Lining for fender	999	Next
2	6C08194479B9	Lining for fender satin black	999	Next
3	6R0819448B	Lining for fender	999	Next
3	6R0819448B9B9	Lining for fender satin black	999	Next
3	6C0819448	Lining for fender	999	Next
3	6C08194489B9	Lining for fender satin black	999	Next
4	6RF819063	Intermediate piece air guide channel	999	Next
5	6RF815077	Intermediate piece	999	Next
5	6RG815077	Intermediate piece	999	Next
5A	6RF857509A	Air guide	999	Next
6	6RF819703C	Air vent	999	Next
6	6RF819703CVAL	Air vent satin black/chrom	999	Next
6	6R0819703AF	Air vent	999	Next
6	6R0819703AFWMV	Air vent satin black	999	Next
6	6R0819703AG	Air vent	999	Next
6	6R0819703AGVAL	Air vent satin black/chrom	999	Next
7	6RF819704C	Air vent	999	Next
7	6RF819704CVAL	Air vent satin black/chrom	999	Next
7	6R0819704AF	Air vent	999	Next
7	6R0819704AFWMV	Air vent satin black	999	Next
7	6R0819704AG	Air vent	999	Next
7	6R0819704AGVAL	Air vent satin black/chrom	999	Next
8	6R2819702B	Air vent for door window	999	Next
8	6R2819702B82V	Air vent for door window titan black	999	Next
9		Cover for airbag	999	Next
10	6R2819151	Footwell vent	999	Next
11	6C2819152	Footwell vent	999	Next
16	N90359101	Spreader rivet 6,5X15	999	Next
18	6R0819465	Vent trim	999	Next
18	6R0819465A	Vent trim	999	Next
20	N90698606	Hexagon socket head panel bolt 4,2X16	999	Next
21	6RF819728C	Air vent	999	Next
21	6RF819728CVAL	Air vent satin black/chrom	999	Next
21	6R0819728BB	Air vent	999	Next
21	6R0819728BBMGQ	Air vent cortina silver	999	Next
21	6R0819728BC	Air vent	999	Next
21	6R0819728BCAMY	Air vent cortina silver	999	Next
22		Bungs not for this model	999	Next
23	6Q0820539	Temperature sensor	999	Next
24	6Q2820723A	Connection piece	999	Next
25	6R0816311	Air hose	999	Next
26	1J0816355	Valve	999	Next
27	6R0857555	Seal	999	Next
28	6R0815479A	Intake manifold	999	Next
30	6RF819203	Vent	999	Next
32	6RF819577A	Trim for air vent	999	Next
33		Air guide channel	999	Next

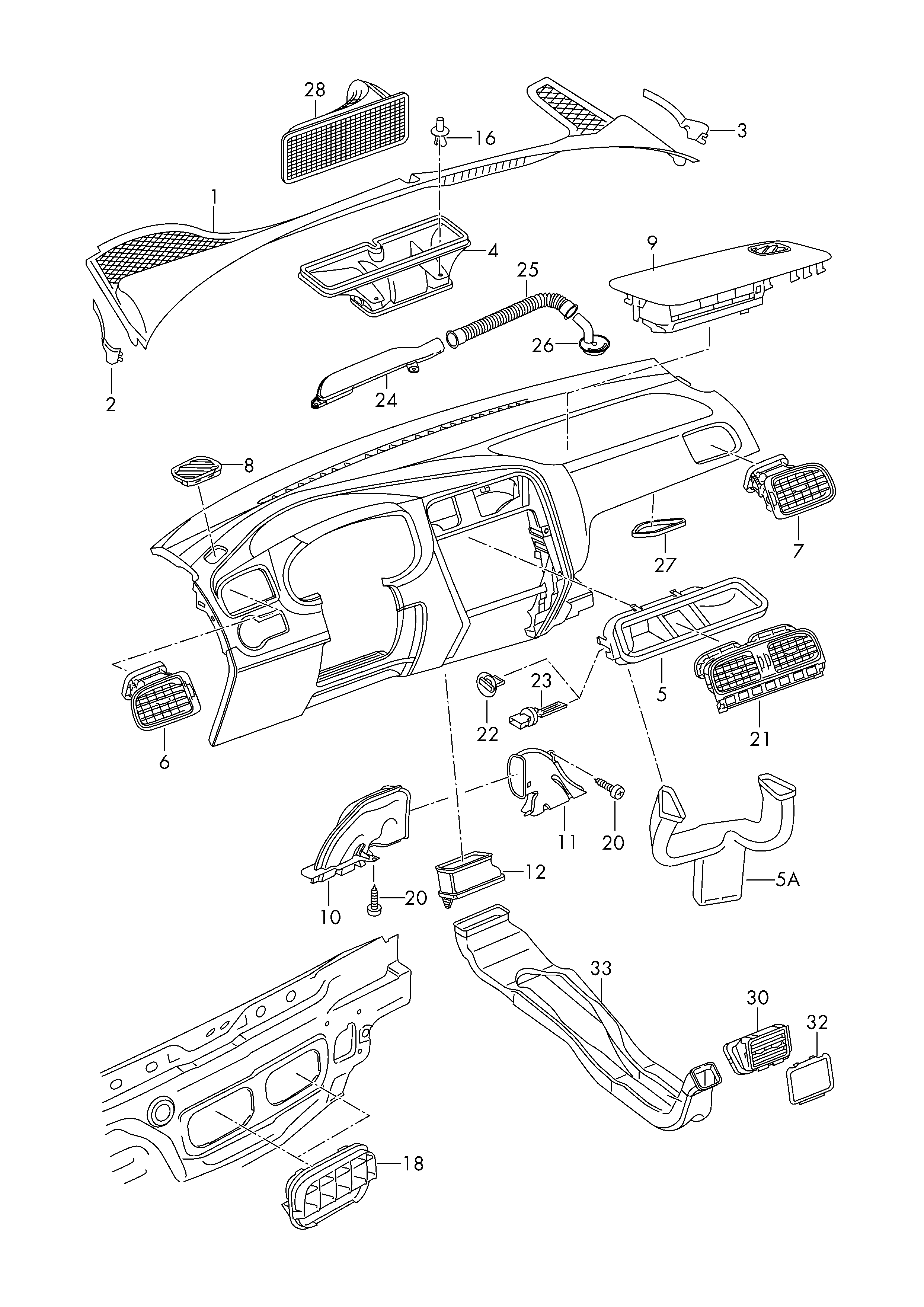

Scheme Air and footwell heater ducts, air hoses and vents notchback Volkswagen Polo 2013-2017 EUR
