Adapter wiring set for seat base, wiring harness for backrest, adjustment Volkswagen Tiguan 2010-2017 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	5N0971365AN	Adapter wiring set for seat base	999	Next
1	5N0971365AQ	Adapter wiring set for seat base electrically adjustable seats	999	Next
1	5N0971365BB	Adapter wiring set for seat base electrically adjustable seats for vehicles with electric memory seat and backrest adjustment	999	Next
1	5N0971365AN	Adapter wiring set for seat base	999	Next
1	5N0971365AQ	Adapter wiring set for seat base electrically adjustable seats	999	Next
1	5N0971365BH	Adapter wiring set for seat base electrically adjustable seats	999	Next
1	5N0971365BE	Adapter wiring set for seat base for models with electric backrest adjustment	999	Next
1	5N0971365BF	Adapter wiring set for seat base electrically adjustable seats for vehicles with electric memory seat and backrest adjustment	999	Next
1	5N0971366AH	Adapter wiring set for seat base	999	Next
1	5N0971366AP	Adapter wiring set for seat base	999	Next
1	5N0971366AQ	Adapter wiring set for seat base electrically adjustable seats	999	Next
1	5N0971366BD	Adapter wiring set for seat base for models with electric backrest adjustment	999	Next
1	5N0971366AH	Adapter wiring set for seat base	999	Next
1	5N0971366AQ	Adapter wiring set for seat base electrically adjustable seats	999	Next
1	5N0971366BB	Adapter wiring set for seat base	999	Next
1	5N0971366BC	Adapter wiring set for seat base for models with seat heating	999	Next
1	5N0971366BD	Adapter wiring set for seat base for models with electric backrest adjustment	999	Next
1	5N0971366BE	Adapter wiring set for seat base for vehicles with electric memory seat and backrest adjustment	999	Next
1	4D0971636	Flat contact housing memory switch for seat adjustment	999	Next
1	1J0972723	Flat contact housing switch for seat adjustment	999	Next
1	893971636	Flat contact housing switch lumbar support	999	Next
1	8E0971980	Flat contact housing with contact locking mechanism control unit for seat and backrest adjustment	999	Next
1	8E0972112A	Flat contact housing with contact locking mechanism memory switch for seat adjustment	999	Next
1	1J0972725	Flat contact housing with contact locking mechanism switch for seat and backrest adjustment	999	Next
1	5N0972705	Flat contact housing drive for fore and aft adjust- ment of lumbar support adjuster (rake adjustment) drive unit for height adjustment	999	Next
1	8E0972710	Flat contact housing with contact locking mechanism coupling element central wiring set	999	Next
1	8T0971830	Bracket for connector housing hole/sheet metal thickness:	999	Next
1	5N0971830	Bracket for connector housing	999	Next
1	1J0972724	Flat contact housing with contact locking mechanism coupling element for models with seat heating	999	Next
1	1J0972732	Flat contact housing coupling element backrest	999	Next
1	3B0972732	Flat contact housing coupling element for models with seat heating	999	Next
1	3C0972733	Flat contact housing coupling element backrest	999	Next
1	1J0973332	Flat contact housing coupling element backrest	999	Next
1	4B0973721	Flat contact housing with contact locking mechanism control unit for seat and backrest adjustment	999	Next
1	5N0971889A	Insulating hose seat	999	Next
1	5N0971369K	Wiring harness for backrest adjustment	999	Next
1	5N0971369L	Wiring harness for backrest adjustment	999	Next
1	5N0971369N	Wiring harness for backrest adjustment electrically adjustable seats	999	Next
1	5N0971369M	Wiring harness for backrest adjustment electrically adjustable seats	999	Next
1	3B0959743	Flat contact housing with contact locking mechanism for models with electric backrest adjustment	999	Next
1	8E0972126	Flat contact housing with contact locking mechanism control unit for seat and backrest adjustment	999	Next
1	1J0972722	Flat contact housing coupling element adapter wiring set for seat base	999	Next
1	3B0972722	Flat contact housing adjusting unit for lower back support	999	Next
1	1J0972723	Flat contact housing coupling element adapter wiring set for seat base	999	Next
1	3B0972722	Flat contact housing coupling element lumbar support	999	Next

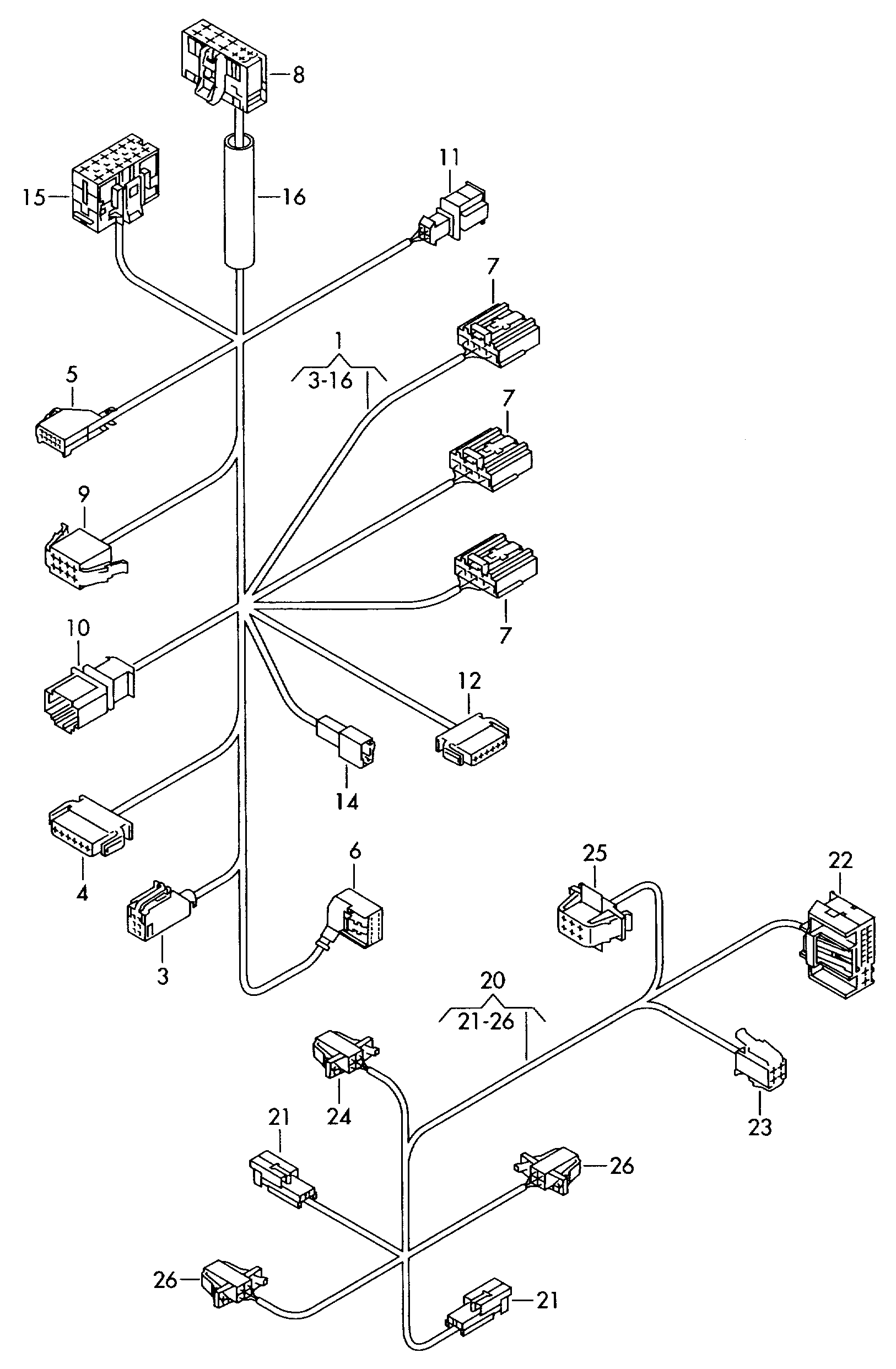

Scheme Adapter wiring set for seat base, wiring harness for backrest, adjustment Volkswagen Tiguan 2010-2017 EUR
