A/c compressor, connecting and mounting parts, for compressor petr. engine Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0820859S	A/c compressor DENSO	999	Next
1	1K0820859SX	A/c compressor DENSO	999	Next
1	1K0820859T	A/c compressor DENSO	999	Next
1	1K0820859TX	A/c compressor DENSO	999	Next
1	5N0820803G	A/c compressor SANDEN	999	Next
1	5K0820803C	A/c compressor SANDEN	999	Next
1	5K0820803C	A/c compressor SANDEN	999	Next
3	1K0260885B	Bracket for compressor	999	Next
3	03F260885	Bracket for a/c compressor	999	Next
4	03L260817	Centre sleeve 11,15X6,5	999	Next
5	N90707502	Hexagon head bolt (combi) M8X100X41	999	Next
6	N10687202	Socket head collared bolt with inner multipoint head M10X45	999	Next
6	N0195433	Hex collared bolt M8X50	999	Next
8	1K0820812B	Pulley for a/c compressor to use for: DENSO 1K0820859S, 1K0820859T	999	Next
9	G052300A2	Coolant compressor oil DENSO	999	Next
9	G052154A2	Coolant compressor oil SANDEN	999	Next

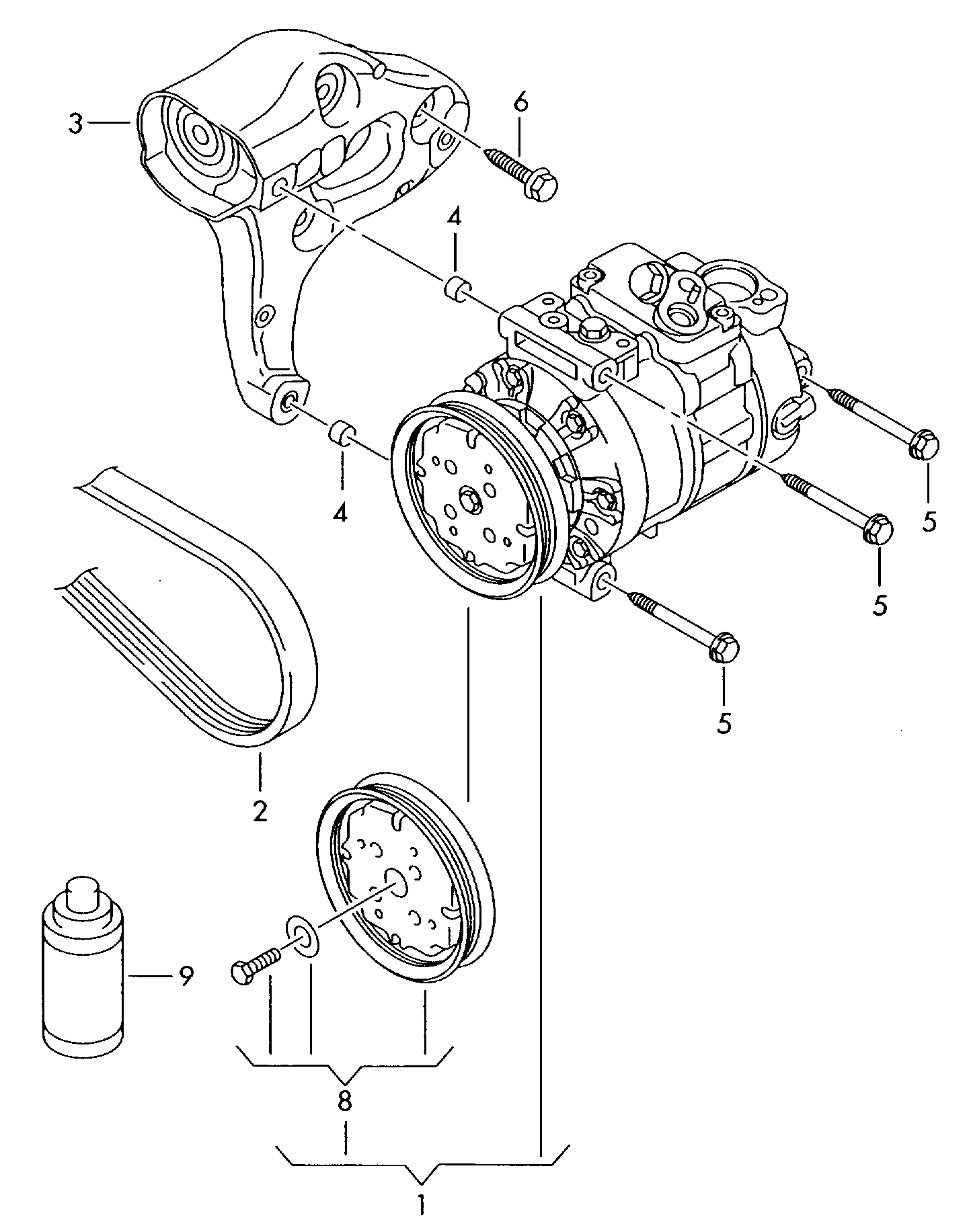

Scheme A/c compressor, connecting and mounting parts, for compressor petr. engine Volkswagen Golf Plus 2012-2014 EUR
