A/c compressor, connecting and mounting parts, for compressor diesel eng. Volkswagen Golf Plus 2012-2014 EUR

Category content

1. Spare parts table
2. An illustrated scheme of this category is below the list of spare parts

№	Part number	Part name	Наличие	Go to the spare parts page
1	1K0820808B	A/c compressor SANDEN	999	Next
1	1K0820808BX	A/c compressor SANDEN	999	Next
1	1K0820808F	A/c compressor SANDEN	999	Next
1	1K0820808FX	A/c compressor SANDEN	999	Next
1	5N0820803C	A/c compressor SANDEN	999	Next
1	5N0820803H	A/c compressor SANDEN	999	Next
1	5K0820803	A/c compressor supplied alternatively: SANDEN DELPHI	999	Next
1	5K0820803X	A/c compressor supplied alternatively: SANDEN DELPHI	999	Next
4	03L260817	Centre sleeve 11,15X6,5	999	Next
5	N90707502	Hexagon head bolt (combi) M8X100X41	999	Next
7	N10241605	Hex collared bolt M10X45	999	Next
8		Pulley no replacement part	999	Next
9	G052154A2	Coolant compressor oil SANDEN DELPHI	999	Next
9	G052300A2	Coolant compressor oil DENSO	999	Next

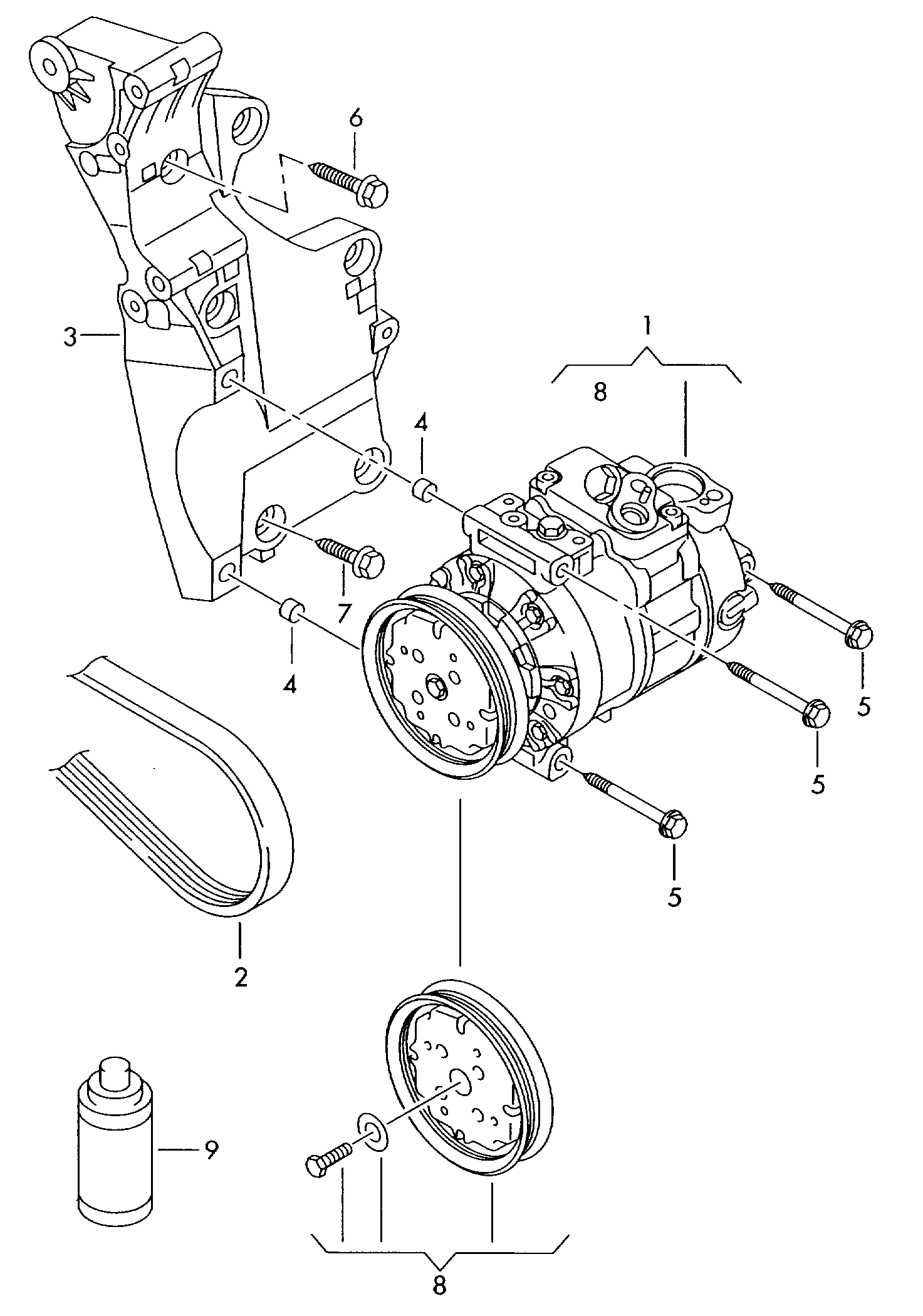

Scheme A/c compressor, connecting and mounting parts, for compressor diesel eng. Volkswagen Golf Plus 2012-2014 EUR
